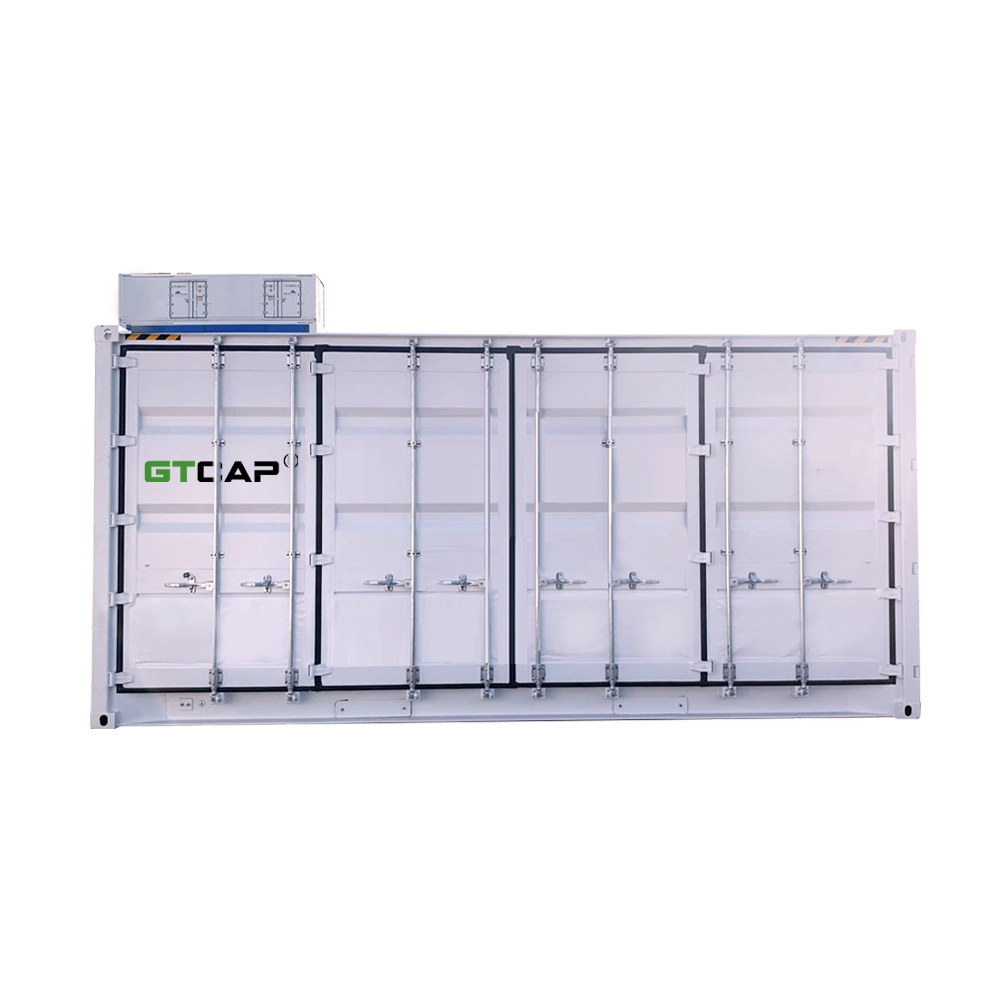

GTEF-752V2.2MWh/1MW-C Capmega High Voltage ESS
The GTEF-752V2.2MWh/1MW system is designed to provide high-power (above MW level) independent micro-grid solution, which can combine various input power sources, improve the reliability of power supply.
Product Features
● Graphene supercapacitor batteries
● Long cycle life time
● Millisecond level response speed of BESS controller, Multiple ESS control functionalities;
● Compatible communication interface with battery management system (BMS);
● Proprietary versatile control algorithms and logics;
● Hundreds of communication protocols are supported;
● Work with different renewable energy for smoothing the power generation;
● Anti-islanding operation;
● The other functions required by grid requirement;
Share With: ![Facebook]()
![Twitter]()
![LinkedIn]()
![Gmail]()
![Pinterest]()
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
General Characteristics
Mechanical Specifications
|
Part Number |
GTEF-752V2.2MWh/1MW-C |
|
Nominal Voltage |
752Vdc |
|
Max. Charge Voltage |
846Vdc |
|
Standard Discharge Cut-off Voltage |
658Vdc |
|
Nominal Capacity |
2940Ah |
|
Energy Storage |
2210kWh |
|
Standard Charge Constant Current @25℃ |
1330A |
|
Internal Resistance |
30mΩ |
|
Energy Efficiency |
95%（0.5C/0.5C, @25℃） |
|
Heating Power |
25kW |
|
Cooling Method |
Forced Air |
|
Dielectric Strength |
AC3000V@50Hz, 1min |
|
Communication |
CAN, RS485, LAN |
|
Dimensions(WxDxH) |
12192*2438*2896mm |
|
Mount Options |
On floor |
