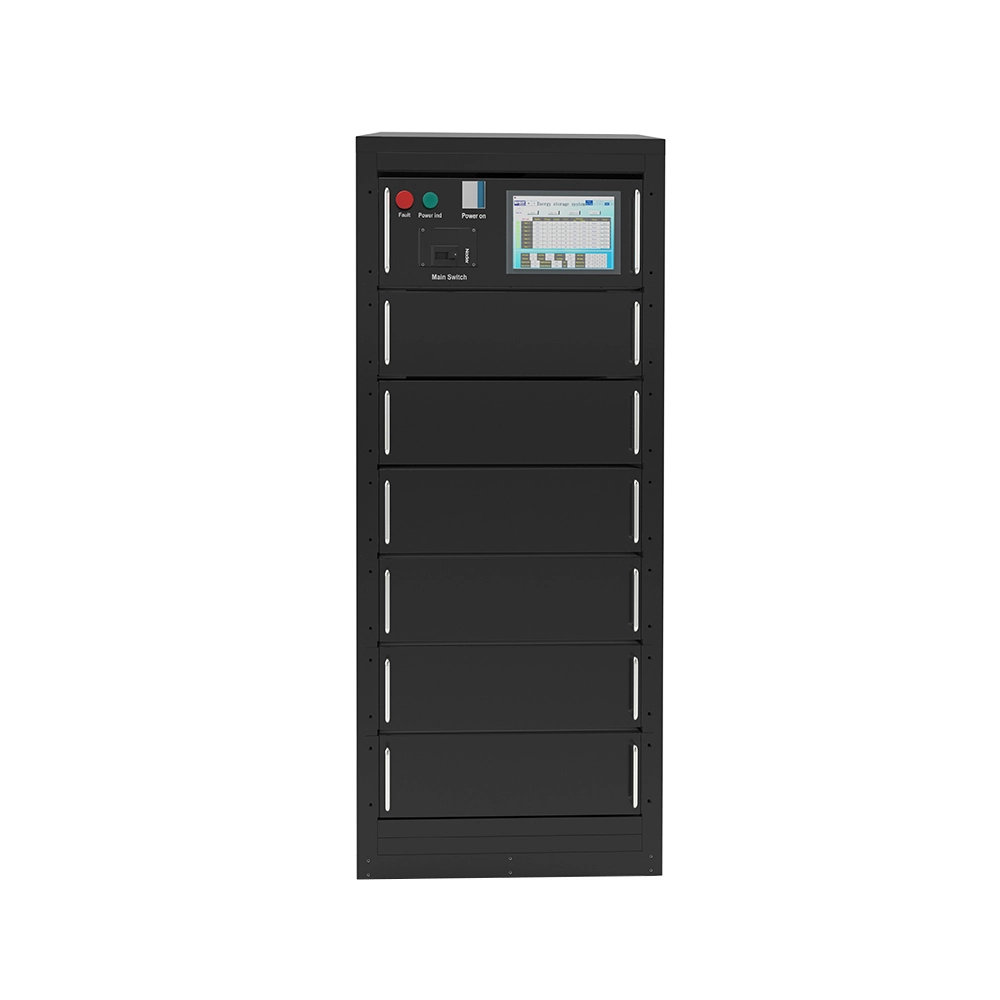

GTEM-800V57kWh-R High Voltage Commercial & industrial Battery Storage System

The GTEM-800V57kWh system is designed to help reduce peak power demand by using stored energy during high usage periods. With a capacity of 57kWh, it is able to provide reliable energy supply and help businesses save on electricity costs.

Product Features

● Graphene supercapacitor batteries

● Long cycle life time

● DoD up to 100%

● Safest technology

● High energy transfer efficiency

● Low self-discharge

● Low maintenance

● Environment friendly

Share With:

Inquiry

Write a Review

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-800V57K-R
Energy storage	57kWh
Nominal Voltage	800Vdc
Maximum Charge Voltage	900Vdc
Discharge Cut-off Voltage	626Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	150A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Shell Material	Metal
Parallel Connection	No limited ( add HVB )
communication	CAN, RS485

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor
