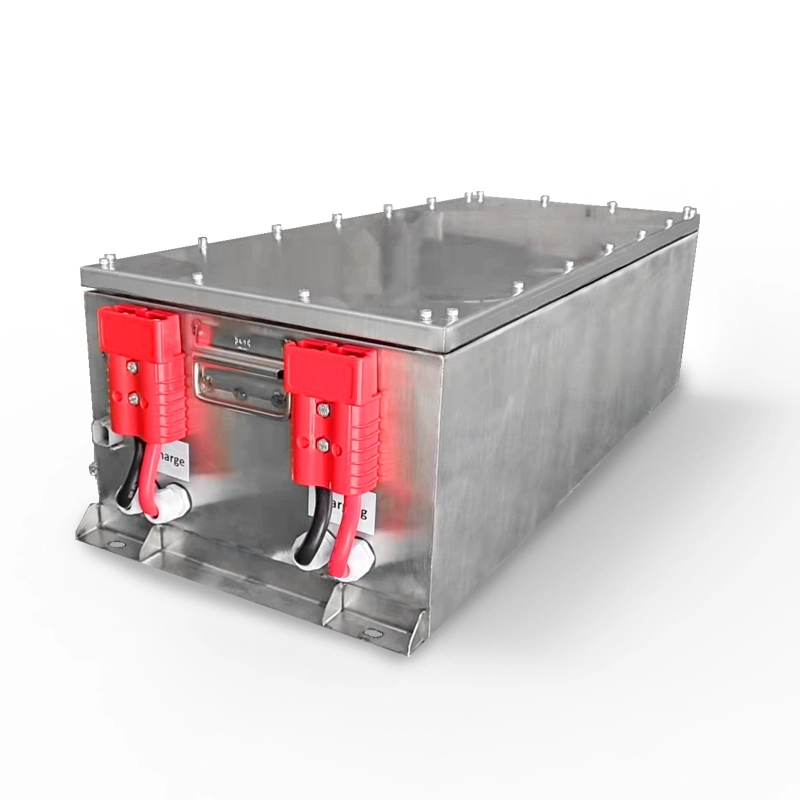

GTEM-96V20K-B Battery for Ship 1
GTEM-96V20K-B Battery for Ship 2
GTEM-96V20K-B Battery for Ship 1
GTEM-96V20K-B Battery for Ship 2

GTEM-96V20K-B Battery for Ship

The GTEM-96V20K-B Battery is a powerful energy source designed to be used in ships. With a capacity of 96 volts and 20 kilowatt-hours, it provides reliable and long-lasting power for marine vessels.
Product Features
Graphene supercapacitor cells
Long cycle life time
DoD up to 100%
Safest technology
Highest energy transfer efficiency
High discharge current
Low self-discharge
Low maintenance
Environment friendly

    oops...!

    no product data.

    Go to homepage
    Product Parameters
    General Characteristics
    Mechanical Specifications

    Part Number

    GTEM-96V20k-B

    Energy storage

    20kWh

    Nominal Voltage

    96Vdc

    Nominal Capacity

    210Ah

    Maximum Charge Voltage

    109.2Vdc

    Discharge Cut-off Voltage

    78Vdc

    ESR/AC @1KHz 50% SOC

    <150mΩ

    Max. Continuous Charge Current

    100A

    Max. Continuous Discharge Current

    500A

    Absolute Peak Current 10s

    600A

    Discharge Temperature

    -20℃~+60℃

    Charge Temperature

    0℃~+55℃

    Cooling Method

    Natural cooling

    Operating Humidity

    0~90% RH Non-condensing

    Cells Self-discharge Rate

    2% per month

    Recommended Depth of Discharge

    ≤90%

    Maximum Depth of Discharge

    100%

    Shell Material

    Metal & ABS plastic

    Monitoring Data

    System voltage,current, temperature,SOC,SOH,cycle,

    cell’s voltage

    Indicator light display

    Capacity %

    Environmental Protection

    IP67

    Storage Conditions

    -20℃~+40℃

    25% ~ 95%RH

    SOC>30%,one full charge needed per two months

    Weight

    190kg

    Dimensions(WxDxH)

    810x550x500(mm)

    Mount Options

    On floor

    Certificate&Compatible Protocol

    Compatible Protocol: CAN, RS485
