GTEM-12V138Wh CCA 1
GTEM-12V138Wh CCA 1

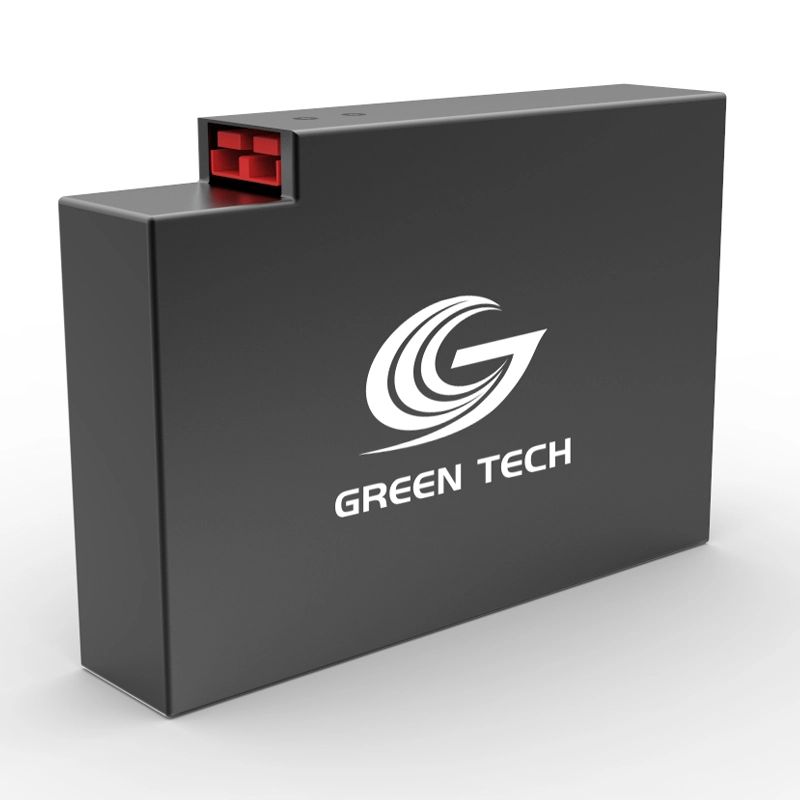

GTEM-12V138Wh CCA

Fast chargeable,large discharge power graphene supercapacitor battery, especially developed for back up power and engine starting.
Product Features
● Graphene supercapacitor cells
Large discharge power
Extreme temperature
Safest technology
Fast rechargeable
Low self-discharge
Low maintenance
Environment friendly

    oops...!

    no product data.

    Go to homepage
    Product Parameters
    General Characteristics
    Mechanical Specifications

    Part Number

    GTEM-12V138-E

    Energy storage

    138Wh

    Nominal Voltage

    12Vdc

    Maximum Charge Voltage

    16.8Vdc

    Discharge Cut-off Voltage

    9Vdc

    ESR/AC @1KHz 50% SOC

    <10Ω

    Max. Continuous Charge Current

    100A

    Max. Continuous Discharge Current

    100A

    Cells Self-discharge Rate

    2% per month

    Projected Cycle Life ( 25℃)

    20,000 times

    Round Trip Efficiency*1

    96%

    Recommended Depth of Discharge

    ≤90%

    Maximum Depth of Discharge

    100%

    Cooling Method

    Natural

    Shell Material

    Metal & ABS plastic

    Monitoring Data

    System voltage,current, temperature,SOC,SOH,cycle,cell`s voltage

    Weight

    3.5kg

    Dimensions(WxDxH)

    52X242X170mm

    Mount Options

    Wall/ floor

    Certificate&Compatible Protocol

    Compatible Protocol: CAN, RS485

    1 (10)
    1 (10)
    2 (9)
    2 (9)
    3 (7)
    3 (7)
    4 (7)
    4 (7)
    5 (8)
    5 (8)
    6 (11)
    6 (11)
    7 (6)
    7 (6)

    Download
