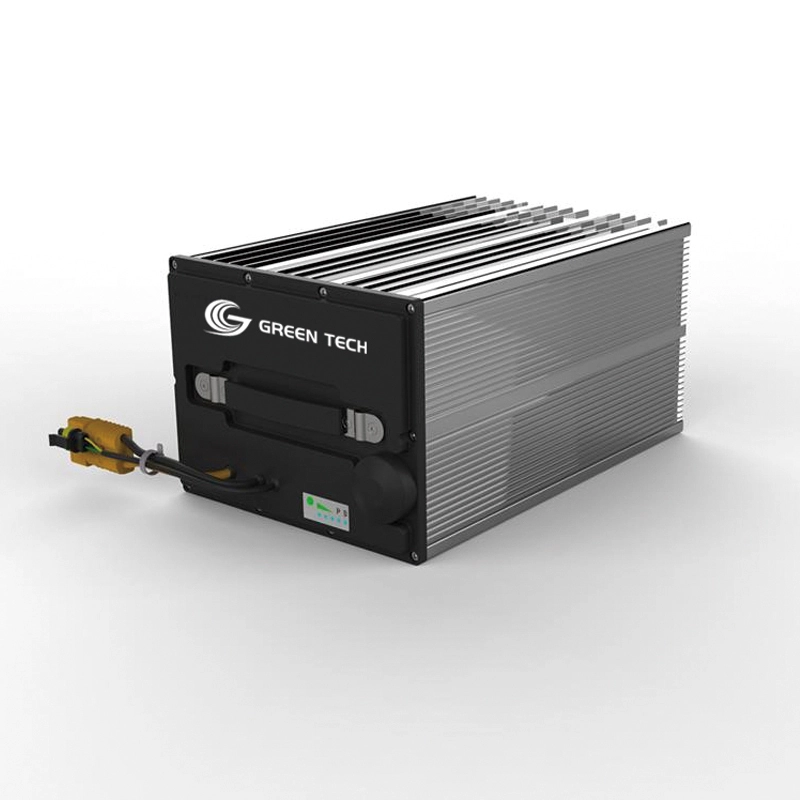

GTEM-24V1600-M Supercapacitor Battery

Highest energy transfer efficiency, fast rechargeable, safe and reliable graphene supercapacitor, especially developed for electric motorcycle and electric rickshaws.

Product Features

● Graphene supercapacitor cells

● Long cycle life time

● DoD up to 100%

● Safest technology

● Highest energy transfer efficiency

● High discharge current

● Low self-discharge

● Low maintenance

● Environment friendly

Share With:

Inquiry

Write a Review

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-24V1600-M
Energy storage	1.6kWh
Nominal Voltage	25.9V/DC
Maximum Charge Voltage	29.4V/DC
Discharge Cut-off Voltage	20.3V/DC
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	50A
Cut-off current (charging)	5A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	10,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Environmental Protection	IP65
Series-Parallel Connection	Not allowed

Weight	22kg
Dimensions(WxDxH)	230x180x430(mm)
Mount Options	On floor
