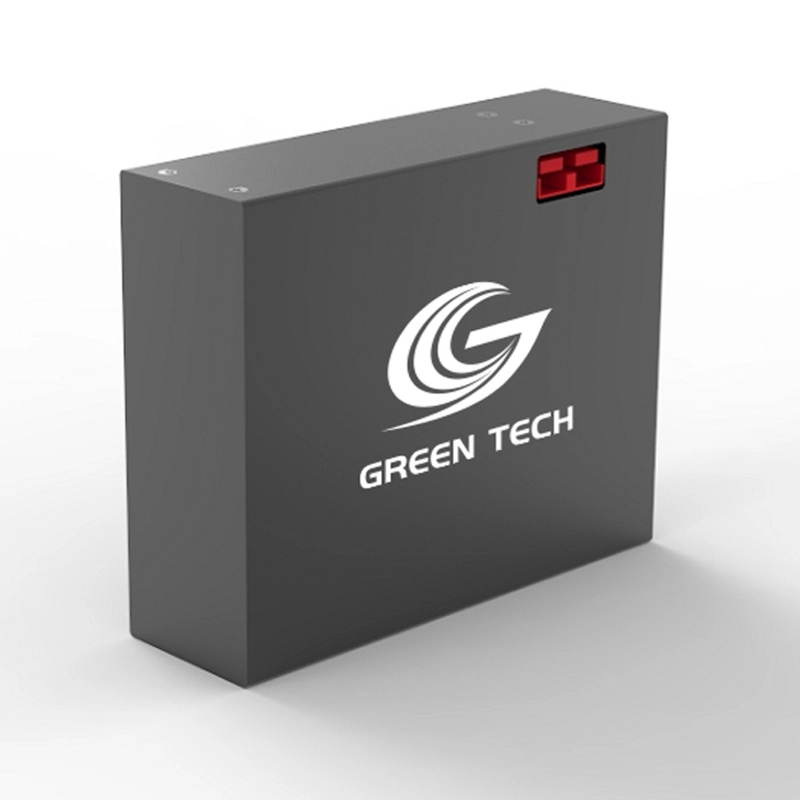

GTEM-24V1.0kWh ESS

Graphene supercapacitor 24V1.0kWh UPS,Fast rechargeable, safe and high reliable, developed for household back-up power supply.
Product Features
● Graphene supercapacitor cells
Long cycle life time
DoD up to 100%
Safest technology
Highest energy transfer efficiency
High discharge current
Low self-discharge
Low maintenance
Environment friendly

    oops...!

    no product data.

    Go to homepage
    Product Parameters
    General Characteristics
    Mechanical Specifications

    Part Number

    GTEM-24V1000-E

    Energy storage

    1.0kWh

    Nominal Voltage

    24Vdc

    Maximum Charge Voltage

    29Vdc

    Discharge Cut-off Voltage

    20Vdc

    ESR/AC @1KHz 50% SOC

    <15mΩ

    Max. Continuous Charge Current

    50A

    Max. Continuous Discharge Current

    50A

    Peak Current

    100A

    Cooling Method

    Natural

    Cells Self-discharge Rate

    2% per month

    Projected Cycle Life ( 25℃)

    20,000 times

    Recommended Depth of Discharge

    ≤90%

    Maximum Depth of Discharge

    100%

    Shell Material

    Metal & ABS plastic

    Monitoring Data

    SOC,voltage,current, temperature

    Series Connection

    Not allowed

    Parallel Connection

    Up to 10sets

    Series-Parallel Connection

    Not allowed

    Weight

    8.5kg

    Dimensions(WxDxH)

    242x65x173(mm)

    Mount Options

    On floor

    Certificate&Compatible Protocol

    Compatible Protocol: CAN, RS485
