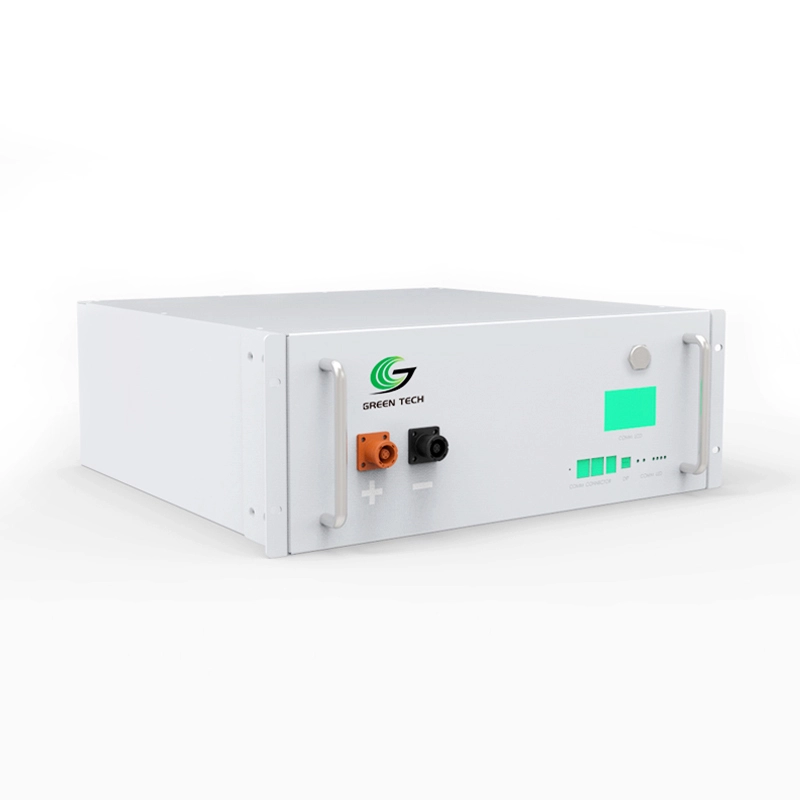

GTEM-48V2.5kWh Capess
Made of graphene supercapacitor battery. Perfect option for house solar energy storage system and telecommunications. Long life,stable and rarely maintenance bring much benefit to the end user,smart manage system.
Product Features
● Graphene supercapacitor cells
● Long cycle life time
● DoD up to 100%
● Safest technology
● Highest energy transfer efficiency
● High discharge current
● Low self-discharge
● Low maintenance
● Environment friendly
Share With: ![Facebook]()
![Twitter]()
![LinkedIn]()
![Gmail]()
![Pinterest]()
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
General Characteristics
Mechanical Specifications
|
Part Number |
GTEM-48V2500-E |
|
2.5kWh |
|
|
Nominal Voltage |
48Vdc |
|
Maximum Charge Voltage |
58Vdc |
|
Discharge Cut-off Voltage |
37.8Vdc |
|
ESR/AC @1KHz 50% SOC |
<20mΩ |
|
Max. Continuous Charge Current |
100A |
|
Max. Continuous Discharge Current |
100A |
|
Power/Energy |
1.85 |
|
Round Trip Efficiency*1 |
93% |
|
Cells Self-discharge Rate |
2% per month |
|
Projected Life ( 25℃) |
15 years |
|
Recommended Depth of Discharge |
≤90% |
|
Maximum Depth of Discharge |
100% |
|
Cooling Method |
Natural |
|
Monitoring Data |
SOC,voltage,current, temperature |
|
Shell Material |
Metal & ABS plastic |
|
Parallel Connection |
Up to 10sets |
|
Series-Parallel Connection |
Not allowed |
|
Weight |
28kg |
|
Dimensions(WxDxH) |
475x365x177(mm) |
|
Mount Options |
On floor |
Certificate&Compatible Protocol
Compatible Protocol: CAN, RS485
