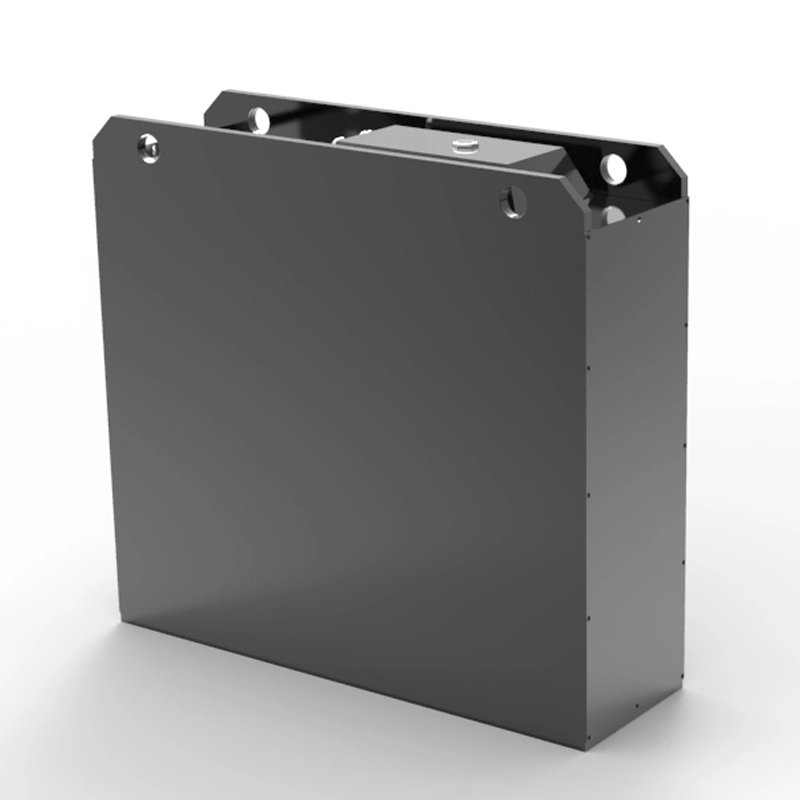

GTEG-23V4.18kWh Forklift battery 1
GTEG-23V4.18kWh Forklift battery 2
GTEG-23V4.18kWh Forklift battery 1
GTEG-23V4.18kWh Forklift battery 2

GTEG-23V4.18kWh Forklift battery

Top technology, Top quality, Top service are our long term aim. Welcome to join GTCAP Battery and bring more green energy to the world.
Product Features
● Graphene supercapacitor cells
Long cycle life time
Safest technology
Smart monitoring
High energy transfer efficiency
Large discharge power
Low self-discharge
Low maintenance
Environment friendly

    oops...!

    no product data.

    Go to homepage
    Product Parameters
    General Characteristics
    Mechanical Specifications

    Part Number

    GTEG-23V4180-F

    Energy storage

    4.18kWh

    Nominal Capacity

    182Ah

    Nominal Voltage

    23Vdc

    Absolute Maximum Voltage

    28Vdc

    Cut-off Voltage (discharging)

    18Vdc

    Configuration

    10S13P

    Pack resistance

    < 10 mΩ

    Continuous Charge Current

    150A

    Continuous Discharge Current

    150A

    Peak Discharge Current

    300A

    Recommended Depth of Discharge

    90%

    Maximum Depth of Discharge

    100%

    Cooling

    Natural cooling

    Ingress Protection

    IP55

    Storage Humidity

    25% ~ 95%RH

    Operating Humidity

    0 – 90% RH

    Storage Temperature

    -20℃~40 ℃

    Weight

    225kg

    Dimensions(WxDxH)

    650*195*600mm

    Mount Options

    Wall/ floor

    Certificate&Compatible Protocol

    Compatible Protocol: CAN, RS485

    1 (10)
    1 (10)
    2 (9)
    2 (9)
    3 (7)
    3 (7)
    4 (7)
    4 (7)
    5 (8)
    5 (8)
    6 (11)
    6 (11)
    7 (6)
    7 (6)
