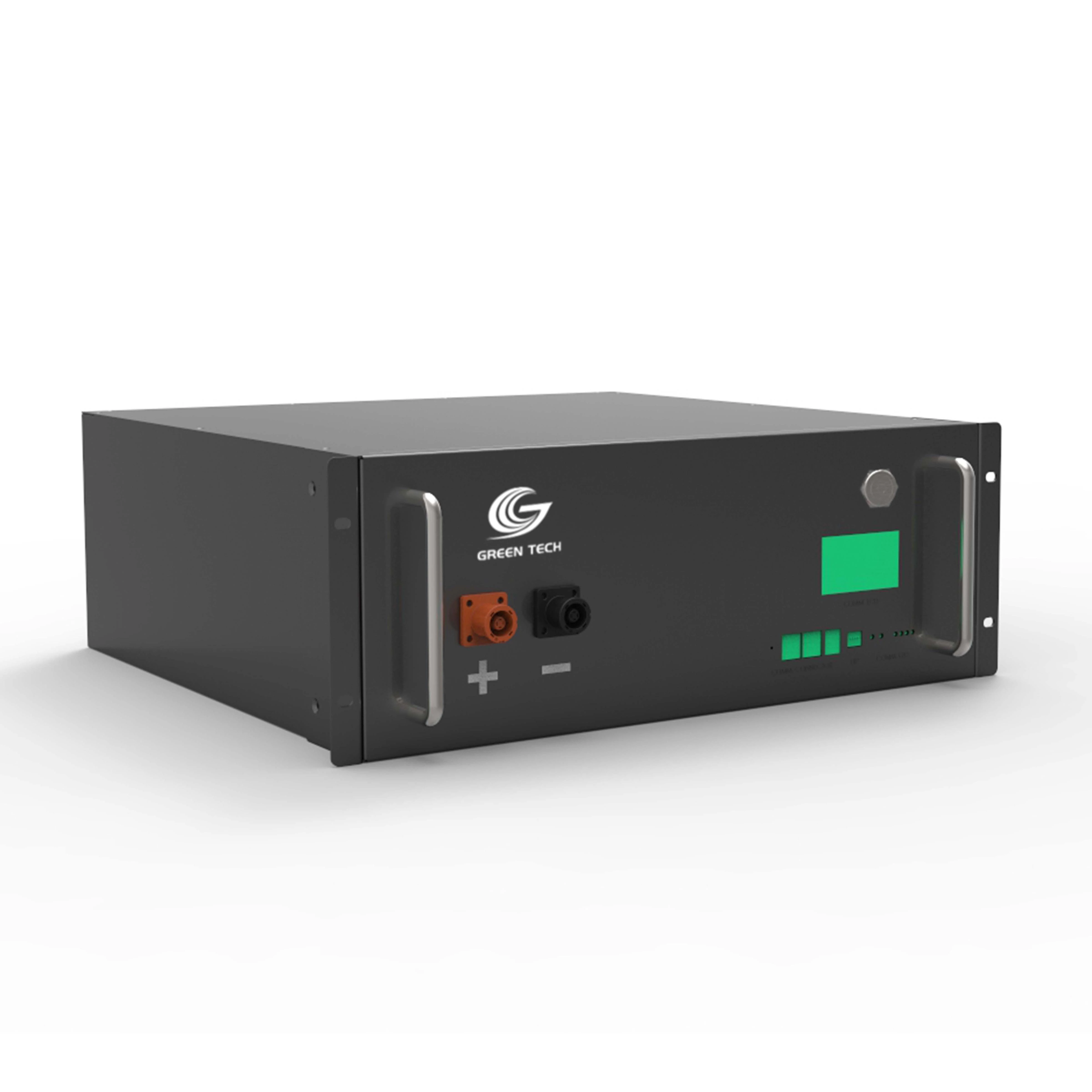

GTEF-48V7200-E

GTEF -48V 7200 -E

GTEF-48V7200-E

这里可以自定义设置
GTEF-48V7200-E
B站不支持收货地址
B站不支持库存规格
Part Number
GTEF-48V7200-E
Series:
EF Series
Nominal Voltage
48V/DC
Maximum Charge Voltage
54.7V/DC
Discharge Cut-off Voltage
45V/DC
Max. Continuous Charge Current
100A
Max. Continuous Discharge Current
100A
Energy storage
7.2KWH
Weight
57Kg
Dimensions(WxDxH)
446x580x260(mm)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

PRODUCT FEATURES

  • Graphene supercapacitor cells

  • Long cycle life time

DoD up to 100%

  • Safest technology

Highest energy transfer efficiency

  • High discharge current

  • Low self-discharge

  • Low maintenance

Environment friendly

GENERAL CHARACTERISTICS

Part Number

GTEF-48V7200-E

Energy storage

7.2KWh

Nominal Voltage

48V/DC

Maximum Charge Voltage

54.7V/DC

Discharge Cut-off Voltage

45V/DC

ESR/AC @1KHz 50% SOC

<15mΩ

Max. Continuous Charge Current

100A

Max. Continuous Discharge Current

100A

Configuration

15S5P

Cooling Method

Natural

Cells Self-discharge Rate

2% per month

Projected Life ( 25℃)

15 years

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage

Series Connection

Not allowed

Parallel Connection

Up to 16sets(if parallel more,add controller box)

Series-Parallel Connection

Not allowed

MECHANICAL SPECIFICATIONS

Weight

57Kg

Dimensions(WxDxH)

446x580x260(mm)

Mount Options

19”Rack and Shelf


PRODUCT APPLICATIONS

Telecom tower station power supplier

Solar and wind micro grid

  • Household back up power supply

  • Solar power energy storage system

UPS

Mobile power supply

PRODUCT DIMENSIONS

(Unit: mm)
