Graphene supercapacitor cells
★
Fast rechargeable
★
Long life time
★
DoD up to 100%
★
★
★
Low maintenance
★
Environment friendly

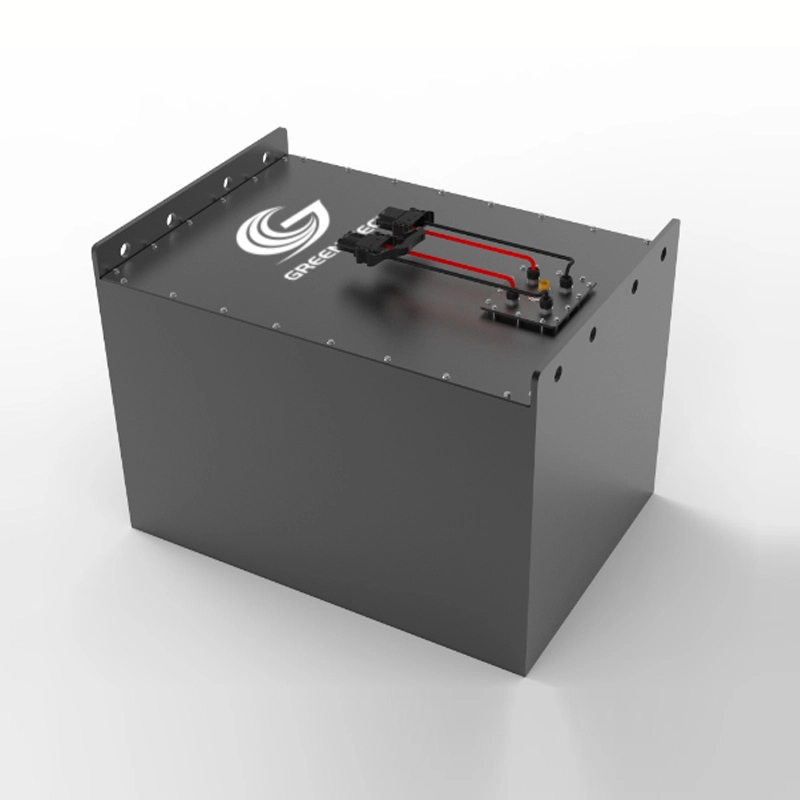

Part Number | GTEM-24V5000-F |
Energy storage | 5.0kWh |
Nominal Voltage | 24Vdc |
Maximum Charge Voltage | 29Vdc |
Discharge Cut-off Voltage | 20Vdc |
ESR/AC @1KHz 50% SOC | <10mΩ |
Max. Continuous Charge Current | 150A |
Max. Continuous Discharge Current | 150A |
Projected Cycle Life ( 25℃) | 20,000 times |
Recommended Depth of Discharge | ≤90% |
Maximum Depth of Discharge | 100% |
Charge Temperature | 0℃~+55℃ |
Discharge Temperature | -20℃~+60℃ |
Cooling Method | Natural |
Shell Material | Metal & ABS plastic |
Parallel Connection | Recommend within 10sets |
Monitoring Data | SOC,voltage, module |
MECHANICAL SPECIFICATIONS | |
Weight | 190kg |
Dimensions(WxDxH) | 645x565x245(mm) |
Mount Options | Wall / floor |
Forklifts
Golf Carts
Electric Rickshaws
Electric Motorcycle
Electric AGV
Electric ATV
