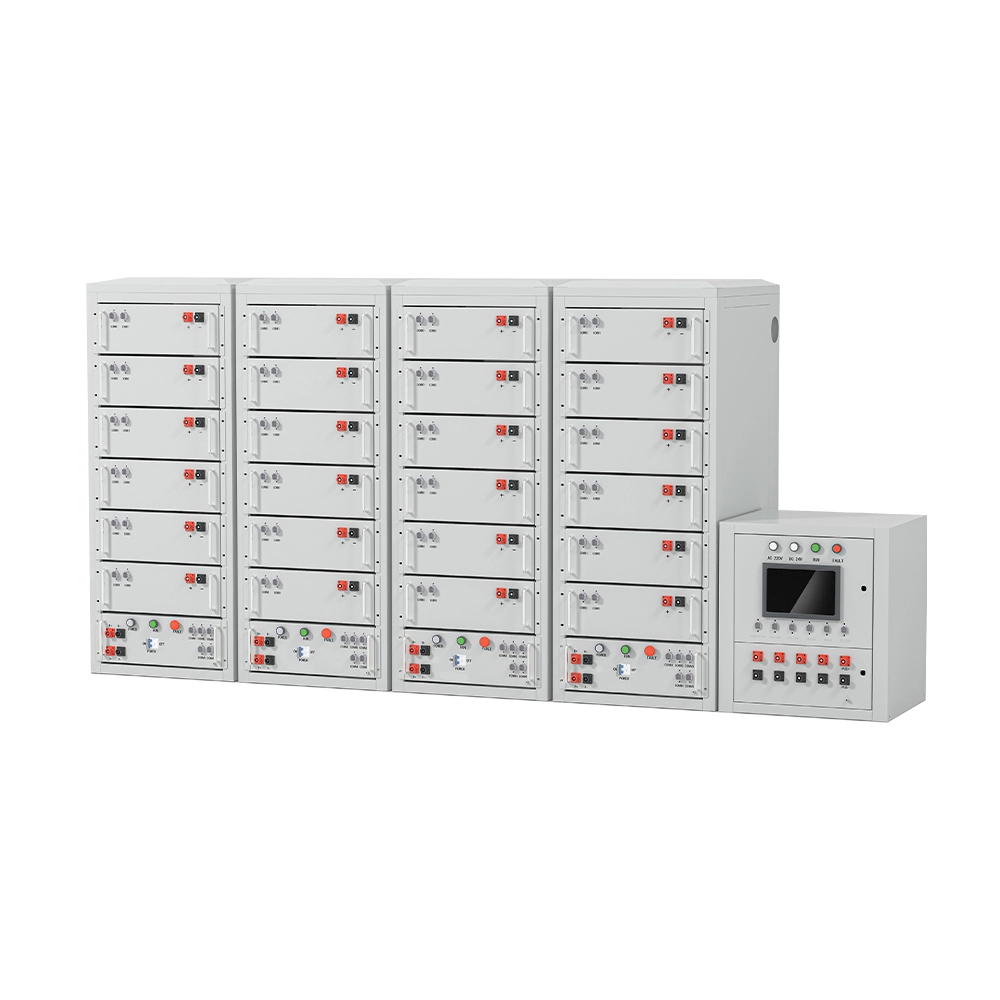

GTEM-400V200KW-200KWH-R High Voltage ESS

The GTEM-400V200KW-200KWH-R system is designed to provide high-power independent micro-grid solution, which can combine various input power sources, improve the reliability of power supply.
Product Features
Graphene supercapacitor batteries
Long cycle life time
 Millisecond level response speed of BESS controller, Multiple ESS control functionalities;
Compatible communication interface with battery management system (BMS);
Proprietary versatile control algorithms and logics;
Hundreds of communication protocols are supported;
Work with different renewable energy for smoothing the power generation;
Anti-islanding operation;
The other functions required by grid requirement;

    oops...!

    no product data.

    Go to homepage
    Product Parameters
    General Characteristics
    Mechanical Specifications

    Part Number

    GTEM-400V200KW-200KWH-R

    Nominal Voltage

    399.6Vd.c

    Max. Charge Voltage

    448.2Vd.c

    Discharge Cut-off Voltage

    324Vd.c

    Nominal Capacity

    504Ah

    Energy Storage

    200kWh
    Max Continuous Charge Current

    600A

    Max Continuous Discharge Current

    600A

    Max. Continuous power
    200kW
    ESR/AC@1KHZ 50% SOC
    <20mΩ
    Weight
    2000kg

    Communication

    PCS CAN / EMS RS485

    Dimensions(WxDxH)

    3740*2400mm

    Mount Options

    On floor

    Certificate Options
    1 (10)
    1 (10)
    2 (9)
    2 (9)
    3 (7)
    3 (7)
    4 (7)
    4 (7)
    5 (8)
    5 (8)
    6 (11)
    6 (11)
    7 (6)
    7 (6)
