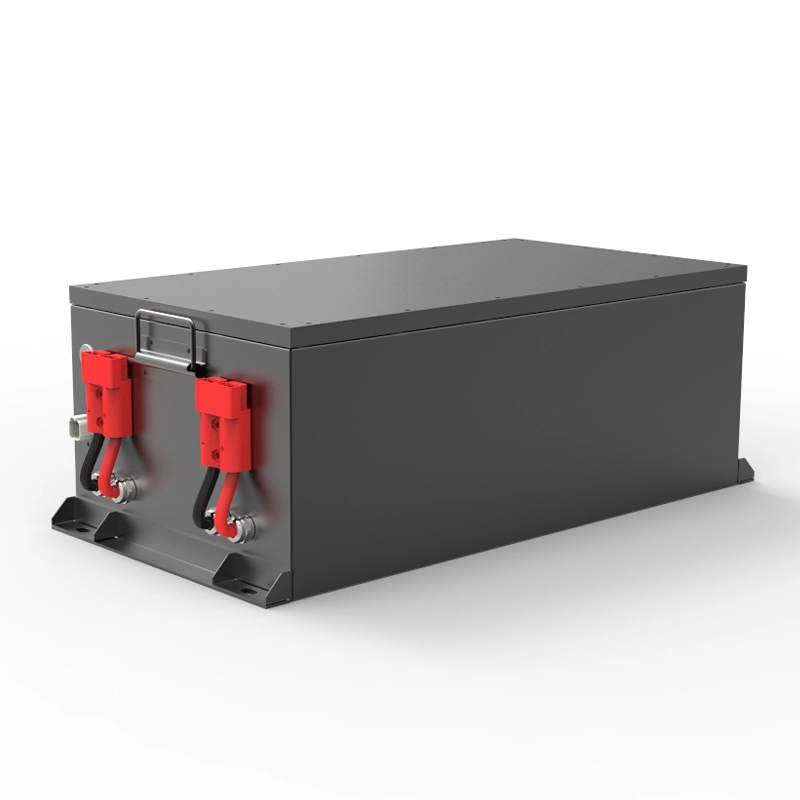

GTEM-48V4.5KWH Golf carts
Graphene Super Capacitor of Golf
Applications: Golf carts / Electric Rickshaws / Electric ATV / Forklifts / AGV
B站不支持收货地址
B站不支持库存规格
Part Number
GTEM-48V4500-G
Series:
EM Series
Nominal Voltage
48V/DC
Maximum Charge Voltage
58.8V/DC
Discharge Cut-off Voltage
40V/DC
Max. Continuous Charge Current
200A
Max. Continuous Discharge Current
200A
Energy storage
4.5KWH
Weight
55KG
Dimensions(WxDxH)
720x355x252mm
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

PRODUCT FEATURES

  • Graphene super capacitor

  • Long cycle life time

DoD up to 100%

  • Safest technology

Highest energy transfer efficiency

  • High discharge current

  • Low self-discharge

  • Low maintenance

Environment friendly

GENERAL CHARACTERISTICS

Part Number

GTEM-48V4500-G

Energy storage

4.5KWh

Nominal Voltage

48V/DC

Nominal Capacity

130Ah

Maximum Charge Voltage

58.8V/DC

Discharge Cut-off Voltage

40V/DC

ESR/AC @1KHz 50% SOC

<30mΩ

Max. Continuous Charge Current

200A

Max. Continuous Discharge Current

200A

Absolute Peak Current 3s

400A

Discharge Temperature

-20℃~+60℃

Charge Temperature

0℃~+55℃

Cooling Method

Natural cooling

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

Module voltage,SOC

Indicator light display

Capacity %

Environmental Protection

IP65


Storage Conditions

-20℃~+40℃

25% ~ 95%RH

SOC>30%,one full charge needed per two months

MECHANICAL SPECIFICATIONS

Weight

55Kg

Dimensions(WxDxH)

720x355x252(mm)

Mount Options

On floor




PRODUCT APPLICATIONS

Golf carts

Electric ATV

  • AGV

  • Electric Rickshaws

Forklifts

Mobile power supply

PRODUCT DIMENSIONS

(Unit: mm)
