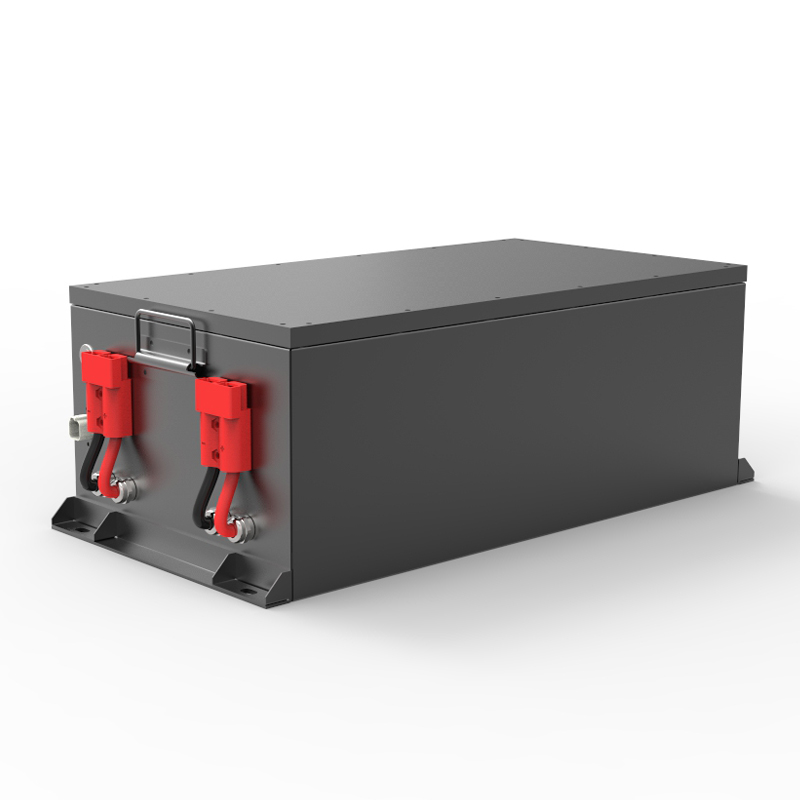

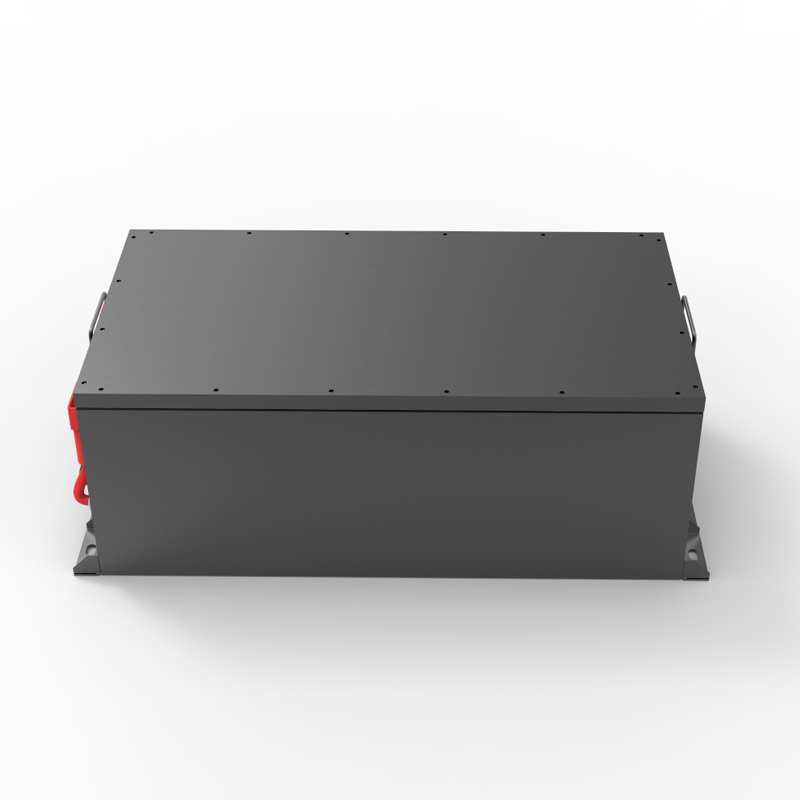

GTEM-48V8.5KWH Golf carts
Graphene Super Capacitor of Golf
Applications: Golf carts / Electric Rickshaws / Forklifts / Electric tools / Industry machine / Electric ferry / Electric sightseeing / vehicle / AGV
B站不支持收货地址
B站不支持库存规格
Part Number
GTEM-48V8500-G
Series:
EM Series
Nominal Voltage
48V/DC
Maximum Charge Voltage
58V/DC
Discharge Cut-off Voltage
42V/DC
Max. Continuous Charge Current
200A
Max. Continuous Discharge Current
200A
Energy storage
8.5KWH
Weight
75Kg
Dimensions(WxDxH)
950x400x252mm
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Part Number

GTEM-48V8500-G

Energy storage

8.5KWh

Nominal Voltage

48V/DC

Maximum Charge Voltage

58V/DC

Discharge Cut-off Voltage

42V/DC

ESR/AC @1KHz 50% SOC

<15mΩ

Max. Continuous Charge Current

200A

Max. Continuous Discharge Current

200A

Absolute Peak Current 10s

300A

Discharge Temperature

-20℃~+60℃

Charge Temperature

0℃~+55℃

Cooling Method

Natural cooling

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

Module voltage,SOC

Indicator light display

Capacity %

Environmental Protection

IP65


Storage Conditions

-20℃~+40℃

25% ~ 95%RH

SOC>30%,one full charge needed per two months

MECHANICAL SPECIFICATIONS

Weight

75Kg

Dimensions(WxDxH)

950x400x252(mm)

Mount Options

On floor




PRODUCT APPLICATIONS

Golf carts

Electric ATV

  • AGV

  • Electric Rickshaws

Forklifts

Mobile power supply

PRODUCT DIMENSIONS

(Unit: mm)
