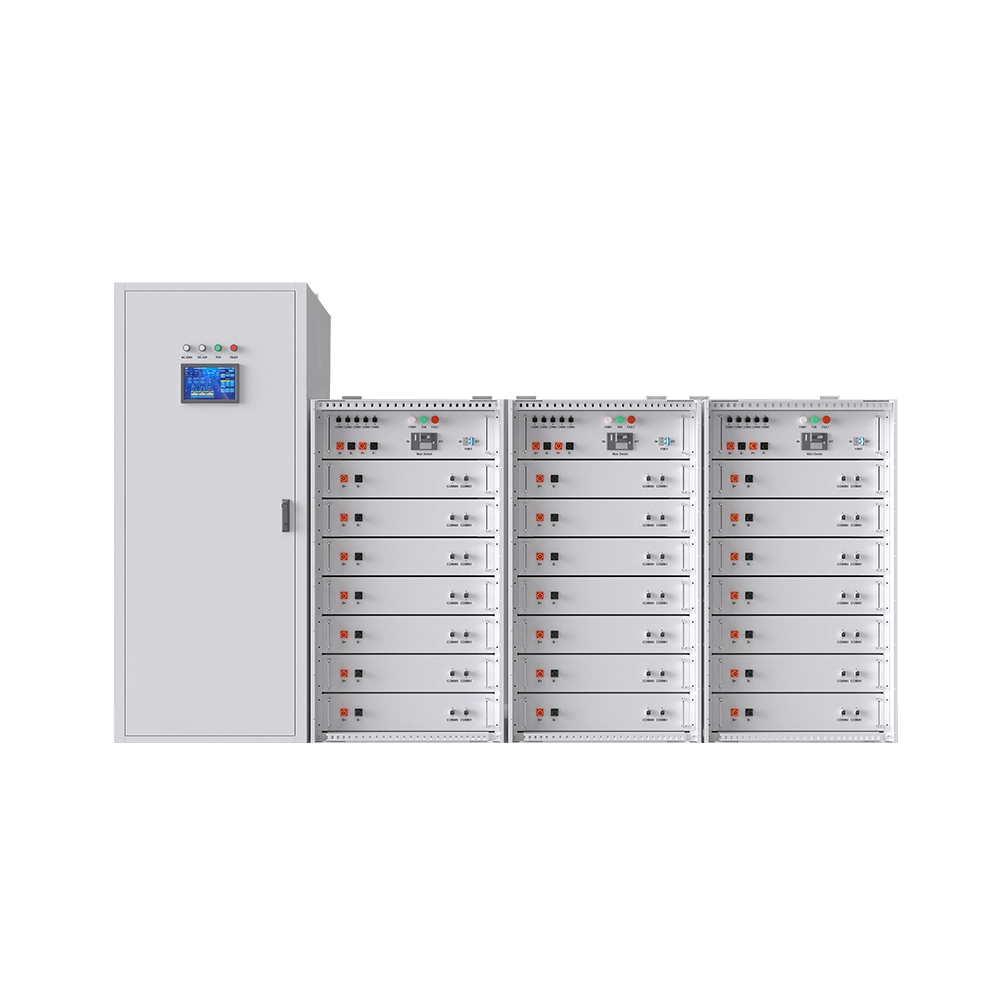

GTEM-700V250KW-264KWH-R High Voltage ESS

The GTEM-700V250KW-264KWH-R system is designed to provide high-power independent micro-grid solution, which can combine various input power sources, improve the reliability of power supply.

Product Features

● Graphene supercapacitor batteries

● Long cycle life time

● Millisecond level response speed of BESS controller, Multiple ESS control functionalities;

● Compatible communication interface with battery management system (BMS);

● Proprietary versatile control algorithms and logics;

● Hundreds of communication protocols are supported;

● Work with different renewable energy for smoothing the power generation;

● Anti-islanding operation;

● The other functions required by grid requirement;

Share With:

Inquiry

Write a Review

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-700V250KW-264KWH-R
Nominal Voltage	699.3Vd.c
Max. Charge Voltage	784.35Vd.c
Discharge Cut-off Voltage	567Vd.c
Nominal Capacity	378Ah
Energy Storage	264.54kWh
Max Continuous Charge Current	360A
Max Continuous Discharge Current	360A
Max. Continuous power	250kW
ESR/AC@1KHZ 50% SOC	<40mΩ
Weight	2500kg
Communication	CAN, RS485, MODBUS TCP

Dimensions(WxDxH)	3740*2400mm
Mount Options	On floor
