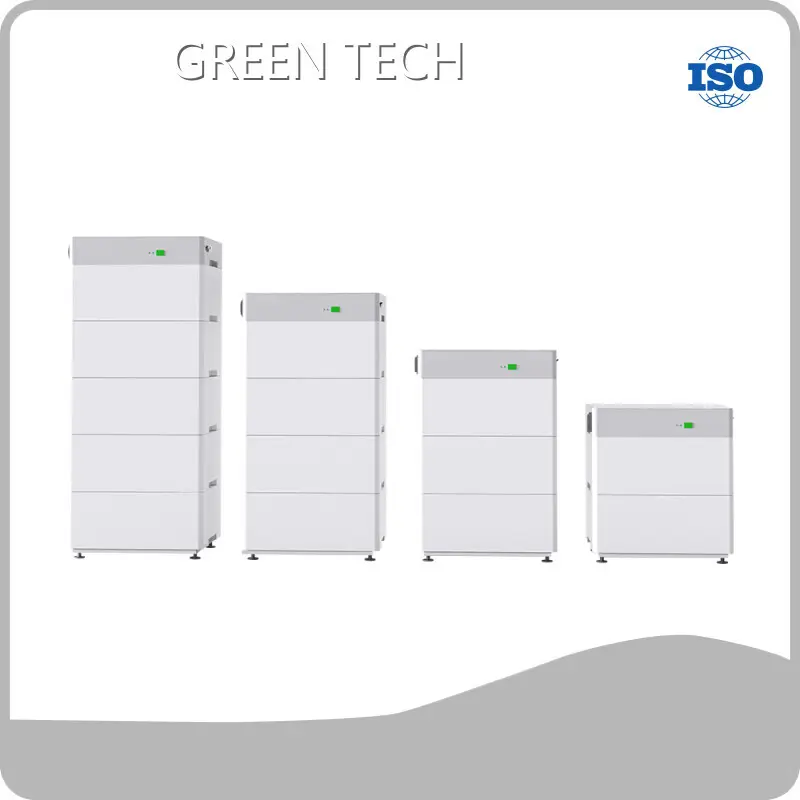

Product details of the battery energy storage system
Quick Overview
battery energy storage system is fabricated utilizing the sophisticated production equipment and facilities. It is tested before supplying to patrons on numerous quality parameters. Our battery energy storage system has a wide range of applications and can be used in a variety of situations and scenarios. The popularity of this product is rising day by day in the global market, showing a great application potential.
Product Introduction
Our battery energy storage system is exquisite in workmanship, and we are not afraid to enlarge the details of our products.
Part Number | GTEF-205V10K-S | GTEF-307V15K-S | GTEF-410V20K-S | GTEF-512V25K-S | GTEF-614V30K-S |
Energy storage | 10kWh | 15kWh | 20kWh | 25kWh | 30kWh |
Number of series modules | 2 | 3 | 4 | 5 | 6 |
Nominal Voltage | 204.8Vd.c | 307.2Vd.c | 409.6Vd.c | 512Vd.c | 614.4Vd.c |
Maximum Charge Voltage | 230.4Vd.c | 345.6Vd.c | 460.8Vd.c | 576Vd.c | 691.2Vd.c |
Discharge Cut-off Voltage | 179.2Vd.c | 268.8Vd.c | 358.4Vd.c | 448Vd.c | 537.6Vd.c |
ESR/AC @1KHz 50% SOC | <100mΩ | <140mΩ | <180mΩ | <220mΩ | <260mΩ |
Max. Continuous Power | 5kW | 7.5kW | 10kW | 12.5kW | 15kW |
Weight | 90kg | 130kg | 170kg | 210kg | 250kg |
Max. Continuous Charge Current | 25A | 25A | 25A | 25A | 25A |
Max. Continuous Discharge Current | 25A | 25A | 25A | 25A | 25A |
Nominal Capacity | 52Ah | 52Ah | 52Ah | 52Ah | 52Ah |
Communication Way | CAN | CAN | CAN | CAN | CAN |
Monitoring Data | System voltage, current, temperature, SOC, SOH, cell voltage. | System voltage, current, temperature, SOC, SOH, cell voltage. | System voltage, current, temperature, SOC, SOH, cell voltage. | System voltage, current, temperature, SOC, SOH, cell voltage. | System voltage, current, temperature, SOC, SOH, cell voltage. |
Projected Cycle Life ( 25℃) | 10000 times(70%EOL) | 10000 times(70%EOL) | 10000 times(70%EOL) | 10000 times(70%EOL) | 10000 times(70%EOL) |
Recommended Depth of Discharge | ≤90% | ≤90% | ≤90% | ≤90% | ≤90% |
Maximum Depth of Discharge | 100% | 100% | 100% | 100% | 100% |
Environmental Protection | IP 20 Indoor | IP 20 Indoor | IP 20 Indoor | IP 20 Indoor | IP 20 Indoor |
Shell Material | Metal | Metal | Metal | Metal | Metal |
Parallel Connection optional |
If connect in Parallel connection, pls inform before order confirmation |
If connect in Parallel connection, pls inform before order confirmation | If connect in Parallel connection, pls inform before order confirmation | If connect in Parallel connection, pls inform before order confirmation | If connect in Parallel connection, pls inform before order confirmation |
Company Introduction
Located in is a modern company. We mainly focus on the business of follows the business philosophy of 'positive and aspirant, innovative and pioneering'. And we adhere to our enterprise spirit, to be passionate, responsible and innovative. Based on that, we strive to improve our core competitiveness. With the purpose of realizing the optimization of enterprise profits and social benefits, we insist on developing the business in a systematic way, which is conducive to corporate sustainable development. We are dedicated to becoming a modern enterprise with a worldwide reputation. has a group of aggressive technical talents and business elites. We also partner with experienced experts at home and abroad to develop new products. All this guarantees the high quality of each product. We strive to provide customers with efficient, complete, and flexible solutions based on their needs.
With years of experience in production, we guarantee our product quality so you can purchase them with confidence. Feel free to contact us!
Welcome, Shanghai Green Tech (GTCAP) is a supercapacitor battery manufacturer and energy storage solutions provider,
offering OEM, ODM and customized energy storage solutions for customers.
