Best Material Deep Cycle Marine Battery Aluminum Foil |

Product Parameters

General Characteristics

Mechanical Specifications

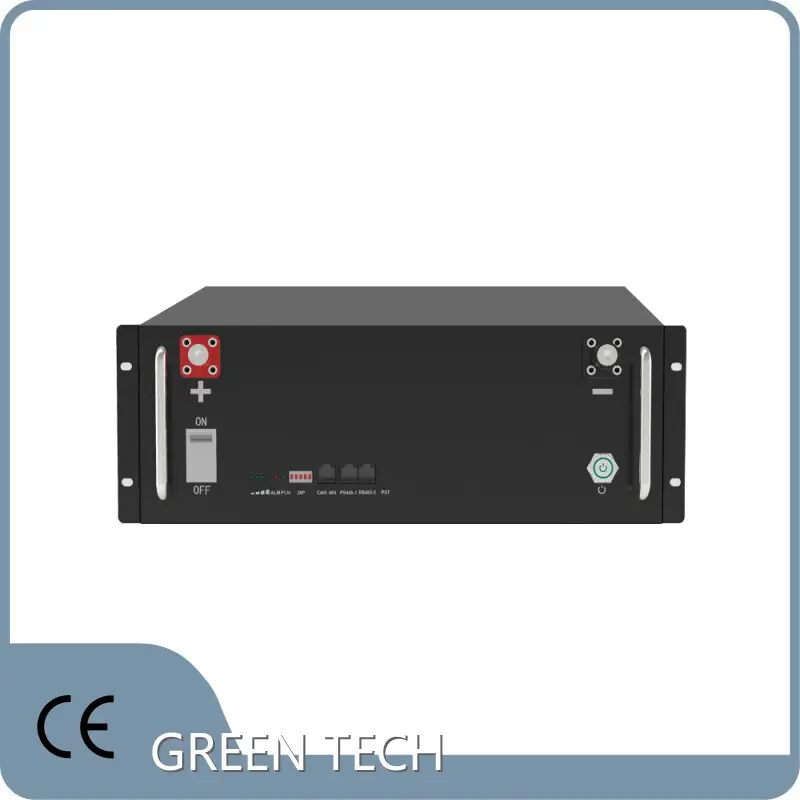

Part Number	GTEF-48V5000-E
Energy storage	5.0kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	37.8Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Peak Current	208A
Cooling Method	Natural
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Up to 10sets
Series-Parallel Connection	Not allowed

Weight	62kg
Dimensions(WxDxH)	475x665x177(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· uses high quality deep cycle marine battery as main material.

· Its quality is secured before the loading.

· has improved its ability to provide competitive deep cycle marine battery, and facilitates its transformation into a modern provider.

Company Features

· is a renowned name in industry, especially famous for high-quality deep cycle marine battery.

· At our production unit, our engineers adhere to international industry quality standards while manufacturing the deep cycle marine battery.

· We believe a good and healthy environment is the foundation of our development and success. Hence, we attach great importance to sustainable development. We have made progress in our production in reducing wastes.

Application of the Product

deep cycle marine battery is widely used in multiple industries and fields.

With a focus on customers' potential needs, has the ability to provide one-stop solutions.
