power storage systems has a high quality appearance thanks to the adoption of qualified materials. It turns out to be effective that our QC team has been always focusing on its quality. has good communication and marketing ability.

Product Parameters

General Characteristics

Mechanical Specifications

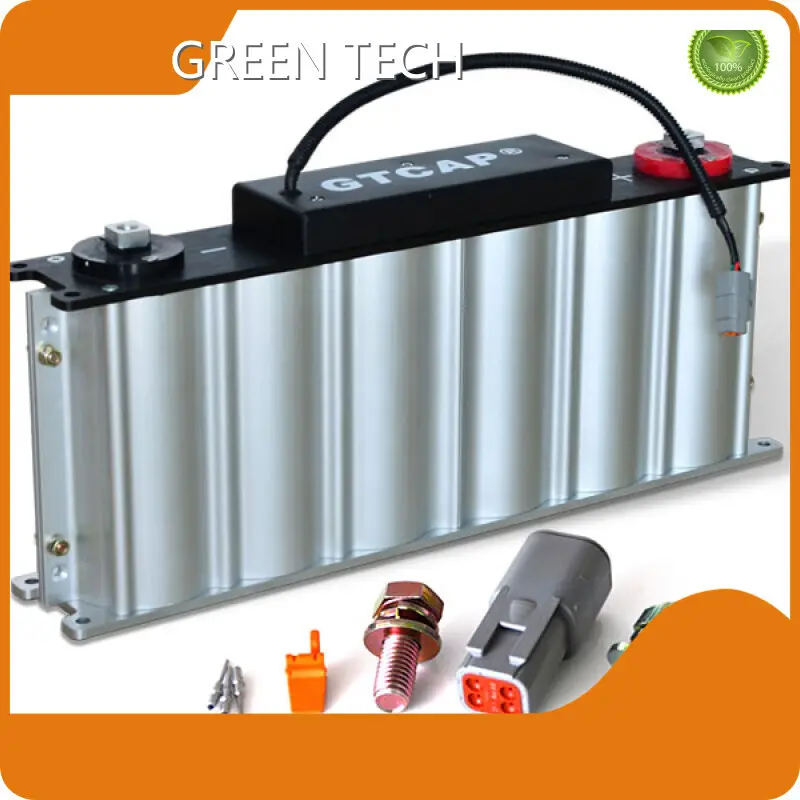

Part Number	GTSM-16V-500FUS
Nominal capacitance	500 F
Capacitance tolerance	+20% / -0%
Rated voltage	16V
Maximum absolute voltage	17V
Maximum series voltage	750V
ESR, DC	1.8mΩ
Maximum continuous current (ΔT=40℃)	100 A
Maximum peak current, 1 sec.	2,275 A
Maximum leakage current (after 72hrs @ 25℃)	5.2 mA
Operating temperature range(Cell case temperature)	-40℃ to +65℃
Storage temperature range(Storage uncharged)	-40℃ to +70℃
Power terminals	M8/M10
Recommended torque - terminal	20/30 Nm
Vibration specification	GB-T 11287-2000
Shock specification	GBT 14537-1993
Environmental protection	IP65

Weight	5.7 kg
Internal temperature sensor	NTC Thermistor
Cell voltage monitoring	Overvoltage Alarm
Usable power density (Pd)	3,590 W/kg

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantage

• In addition to the sales to major cities in the country directly, our company's products are also exported to Southeast Asia, South America and some countries and regions.
• Over the past years, has accumulated rich production experience and has become a long-term supplier of large companies in the domestic market.
• Our company is located in a beautiful environment with pleasant climate and convenient transportation. It makes a great natural advantage in the production, export and sales of products.
• 39;s high-quality talent team is an important human resource for For one thing, they have the professional know-how and they are familiar with the principle, operation, and process of the equipment. For another thing, they have rich experience in practical maintenance operations.
If you are interested in our textile products, you can contact for more detailed product information.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
