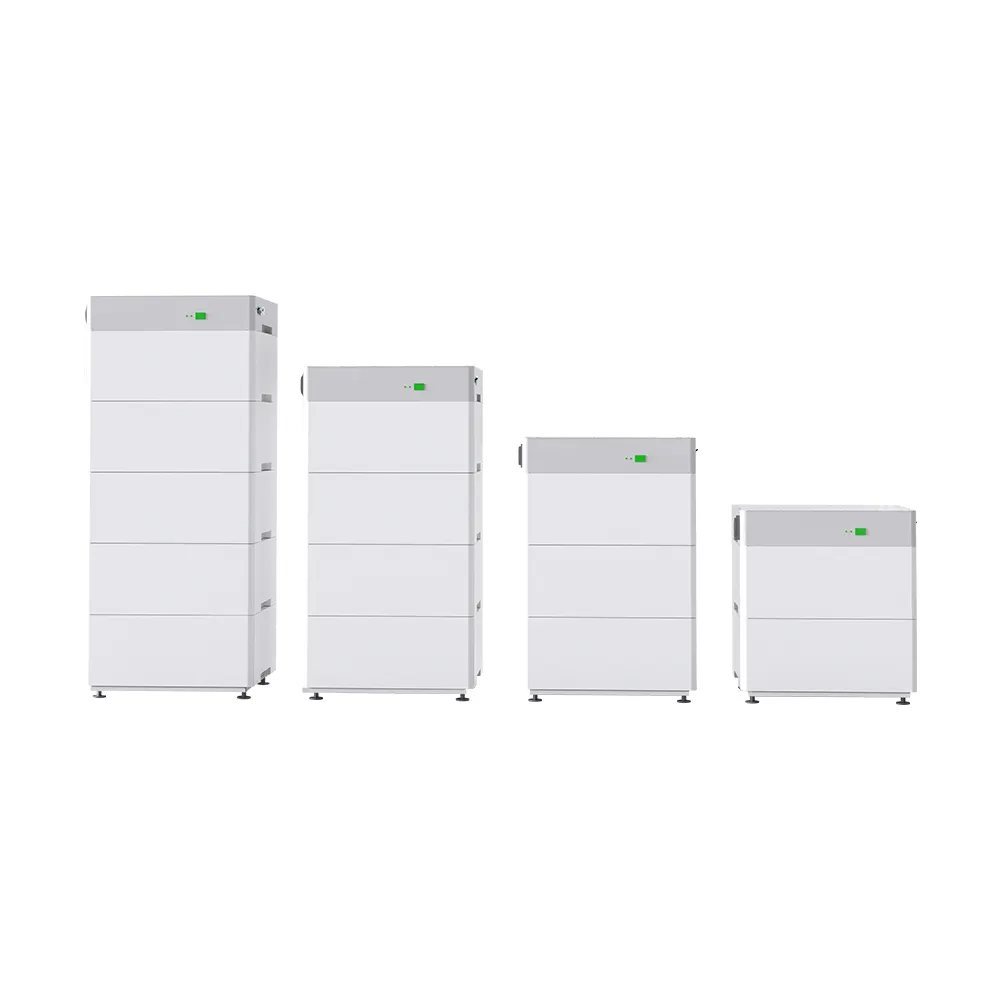

Bulk Production Electrical Energy Storage System EF Series Brand
Product details of the electrical energy storage system
Quick Detail
electrical energy storage system is manufactured using state-of-the-art technology based on the principles of lean production. The product has an extremely long service life through high-intensity detection. The electrical energy storage system developed by our company can be applied in different fields. electrical energy storage system has been leading the fashion trend not only because of its high quality.
Product Description
After improvement, the electrical energy storage system produced by is more brilliant in the following aspects.
| Part Number | GTEF-205V10K-S | GTEF-307V15K-S | GTEF-410V20K-S | GTEF-512V25K-S | GTEF-614V30K-S |
| Energy storage | 10kWh | 15kWh | 20kWh | 25kWh | 30kWh |
| Number of series modules | 2 | 3 | 4 | 5 | 6 |
| Nominal Voltage | 204.8Vd.c | 307.2Vd.c | 409.6Vd.c | 512Vd.c | 614.4Vd.c |
| Maximum Charge Voltage | 230.4Vd.c | 345.6Vd.c | 460.8Vd.c | 576Vd.c | 691.2Vd.c |
| Discharge Cut-off Voltage | 179.2Vd.c | 268.8Vd.c | 358.4Vd.c | 448Vd.c | 537.6Vd.c |
| ESR/AC @1KHz 50% SOC | ＜100mΩ | ＜140mΩ | ＜180mΩ | ＜220mΩ | ＜260mΩ |
| Max. Continuous Power | 5kW | 7.5kW | 10kW | 12.5kW | 15kW |
| Weight | 90kg | 130kg | 170kg | 210kg | 250kg |
| Max. Continuous Charge Current | 25A | 25A | 25A | 25A | 25A |
| Max. Continuous Discharge Current | 25A | 25A | 25A | 25A | 25A |
| Nominal Capacity | 52Ah | 52Ah | 52Ah | 52Ah | 52Ah |
| Communication Way | CAN | CAN | CAN | CAN | CAN |
| Monitoring Data | System voltage, current, temperature, SOC, SOH, cell voltage. | System voltage, current, temperature, SOC, SOH, cell voltage. | System voltage, current, temperature, SOC, SOH, cell voltage. | System voltage, current, temperature, SOC, SOH, cell voltage. | System voltage, current, temperature, SOC, SOH, cell voltage. |
| Projected Cycle Life ( 25℃) | 10000 times(70%EOL) | 10000 times(70%EOL) | 10000 times(70%EOL) | 10000 times(70%EOL) | 10000 times(70%EOL) |
| Recommended Depth of Discharge | ≤90% | ≤90% | ≤90% | ≤90% | ≤90% |
| Maximum Depth of Discharge | 100% | 100% | 100% | 100% | 100% |
| Environmental Protection | IP 20 Indoor | IP 20 Indoor | IP 20 Indoor | IP 20 Indoor | IP 20 Indoor |
| Shell Material | Metal | Metal | Metal | Metal | Metal |
| Parallel Connection optional | Not allowed | Not allowed | Not allowed | Not allowed | Not allowed |
