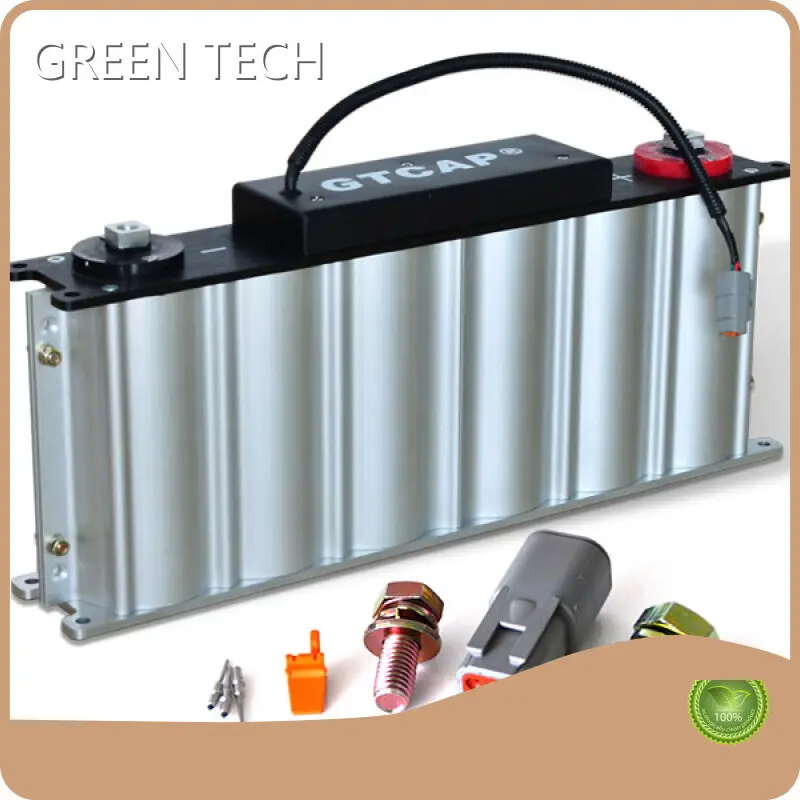

Capacitor Bank 417x67x178mm - at Sale -

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTSM-16V-500FUS
Nominal capacitance	500 F
Capacitance tolerance	+20% / -0%
Rated voltage	16V
Maximum absolute voltage	17V
Maximum series voltage	750V
ESR, DC	1.8mΩ
Maximum continuous current (ΔT=40℃)	100 A
Maximum peak current, 1 sec.	2,275 A
Maximum leakage current (after 72hrs @ 25℃)	5.2 mA
Operating temperature range(Cell case temperature)	-40℃ to +65℃
Storage temperature range(Storage uncharged)	-40℃ to +70℃
Power terminals	M8/M10
Recommended torque - terminal	20/30 Nm
Vibration specification	GB-T 11287-2000
Shock specification	GBT 14537-1993
Environmental protection	IP65

Weight	5.7 kg
Internal temperature sensor	NTC Thermistor
Cell voltage monitoring	Overvoltage Alarm
Usable power density (Pd)	3,590 W/kg

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The production technology of capacitor bank has been greatly improved by our dedicated R&D team.

· Strict and perfect quality control system makes capacitor bank's quality more stable.

· customer service will carefully listening and attending to customers’ needs.

Company Features

· is founded engaging in the manufacturing of capacitor bank since years ago with continuously increasing overseas customers.

· adheres to selecting superior raw materials to produce our products.

· Since its inception, GREEN TECH has focused on market demand and continuously upgraded and improved its products. Inquire now!

Application of the Product

capacitor bank can be widely used in various fields.

With the concept of 'customers first, services first', always focuses on customers. And we try our best to meet their needs, so as to provide the best solutions.
