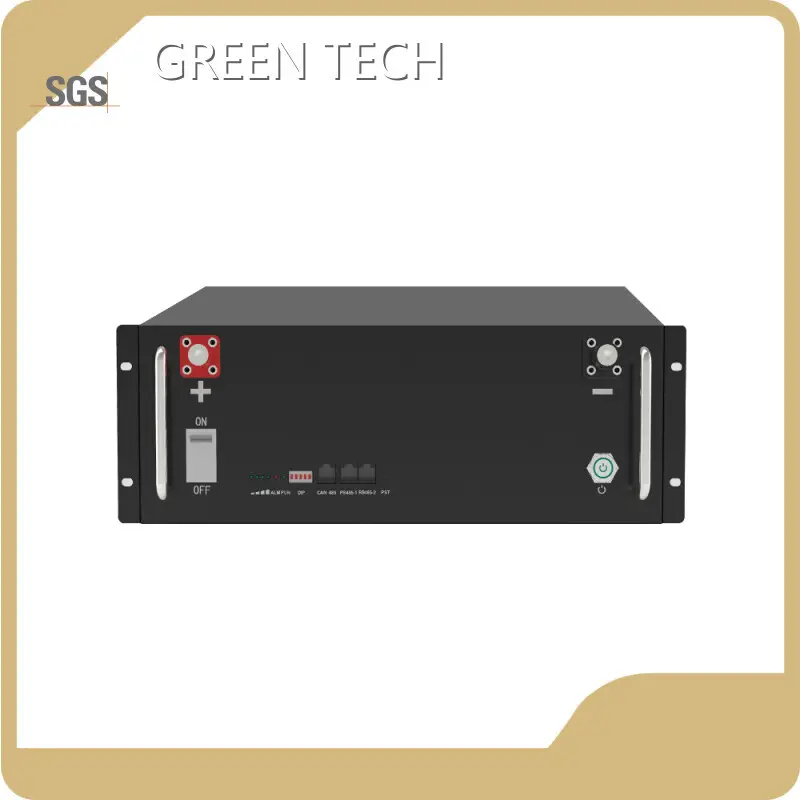

Custom Graphene Battery for Ev 470x520x170(mm)

Part Number:
GTEM-48V7500-E
Maximum Charge Voltage:
58Vdc
Max. Continuous Discharge Current:
100A
Energy storage:
7.5kWh
Dimensions(WxDxH):
470x520x170(mm)
Inquiry
Send your inquiry

Product details of the graphene battery for ev


Product Information

graphene battery for ev is manufactured as per the set industry standards. The product, with long-lasting performance and good durability, is of the highest quality. This product is widely used and popular in the specific customer segment.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-48V7500-E

Energy storage

7.5kWh

Nominal Voltage

51.8Vdc

Maximum Charge Voltage

58Vdc

Discharge Cut-off Voltage

42Vdc

ESR/AC @1KHz 50% SOC

<10mΩ

Max. Continuous Charge Current

100A

Max. Continuous Discharge Current

100A

Cooling Method

Natural

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

System voltage, current, temperature, SOC, SOH, cycle, cell's voltage

Series Connection

Not allowed

Parallel Connection

Up to 16 sets

Series-Parallel Connection

Not allowed

Weight

72kg

Dimensions(WxDxH)

475x685x177(mm)

Mount Options

On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485
