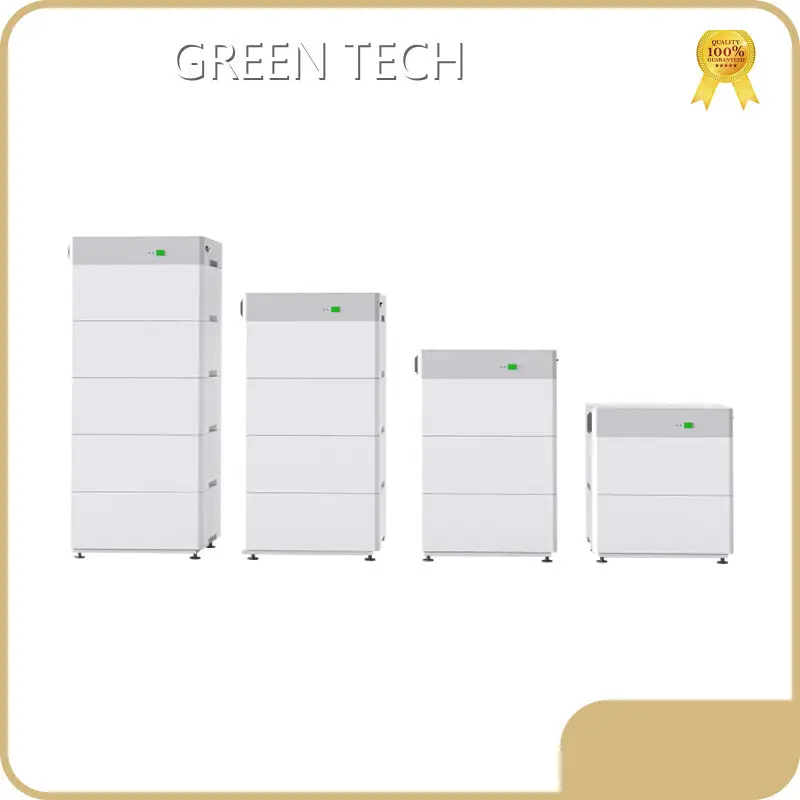

Custom Home Energy Storage System 25A

Maximum Charge Voltage:

230.4Vd.c

Max. Continuous Discharge Current:

25A

Max. Continuous Charge Current:

25A

Energy storage:

10kWh

Discharge Cut-off Voltage:

179.2Vd.c

Inquiry

Product details of the home energy storage system

Product Description

home energy storage system adopts imported raw materials to ensure the smooth production process. Perfect quality assurance and managing system jointly assure the quality of this product. The product enjoys good reputation in the industry and is believed to be used more widely in the future.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-205V10K-S	GTEF-307V15K-S	GTEF-410V20K-S	GTEF-512V25K-S	GTEF-614V30K-S
Energy storage	10kWh	15kWh	20kWh	25kWh	30kWh
Number of series modules	2	3	4	5	6
Nominal Voltage	204.8Vd.c	307.2Vd.c	409.6Vd.c	512Vd.c	614.4Vd.c
Maximum Charge Voltage	230.4Vd.c	345.6Vd.c	460.8Vd.c	576Vd.c	691.2Vd.c
Discharge Cut-off Voltage	179.2Vd.c	268.8Vd.c	358.4Vd.c	448Vd.c	537.6Vd.c
ESR/AC @1KHz 50% SOC	＜100mΩ	＜140mΩ	＜180mΩ	＜220mΩ	＜260mΩ
Max. Continuous Power	5kW	7.5kW	10kW	12.5kW	15kW
Weight	90kg	130kg	170kg	210kg	250kg
Max. Continuous Charge Current	25A	25A	25A	25A	25A
Max. Continuous Discharge Current	25A	25A	25A	25A	25A
Nominal Capacity	52Ah	52Ah	52Ah	52Ah	52Ah
Communication Way	CAN	CAN	CAN	CAN	CAN
Monitoring Data	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.
Projected Cycle Life ( 25℃)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)
Recommended Depth of Discharge	≤90%	≤90%	≤90%	≤90%	≤90%
Maximum Depth of Discharge	100%	100%	100%	100%	100%
Environmental Protection	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor
Shell Material	Metal	Metal	Metal	Metal	Metal
Parallel Connection optional	Not allowed	Not allowed	Not allowed	Not allowed	Not allowed
