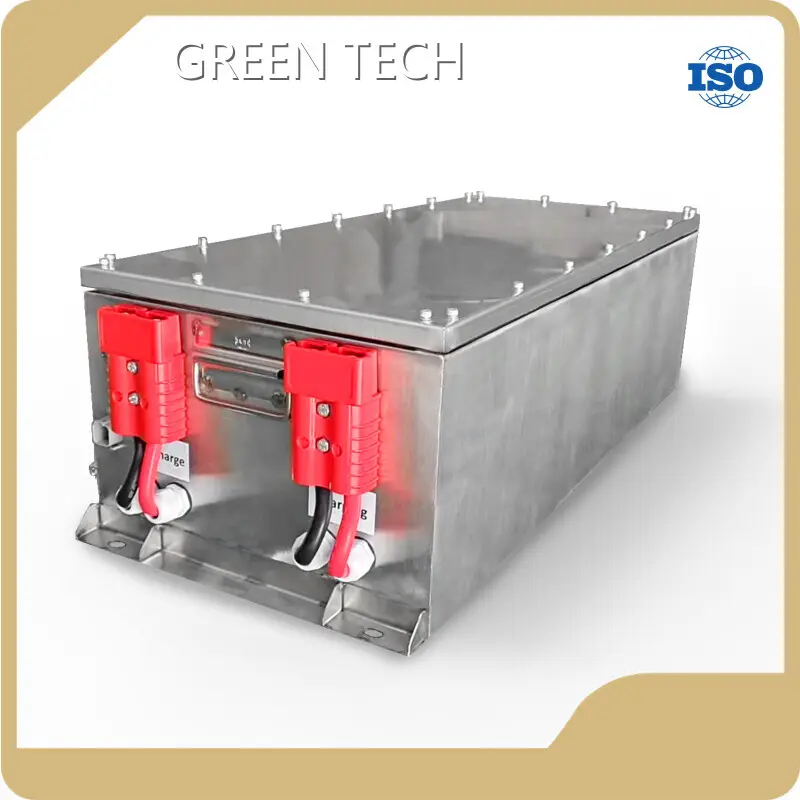

Deep Cycle Boat Battery GTEM-48V10K-B 51.8Vdc 200A Brand Deep Cycle Boat Battery

Product details of the deep cycle boat battery

Quick Overview

deep cycle boat battery is fabricated combining with the simple and modern design concept. The product has a complete life cycle due to the strict testing which is in line with the internal and external standards. Thus, the product is durable in use for a long time. fully takes advantage of the market demand for deep cycle boat battery in the course of its development.

Product Description

deep cycle boat battery has better performances in the following aspects.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V10k-B
Energy storage	10kWh
Nominal Voltage	51.8Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Stainless steel
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	82kg
Dimensions(WxDxH)	1124x400x256(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V10K-B Battery

Company Advantages

located in is a company. Our main product is Our company insists on providing sincere service. Moreover, we are committing to seeking common development with our customers, and maintaining long-term friendly relations between us. Our products are of guaranteed quality and tight package. Welcome customers with needs to contact us!
