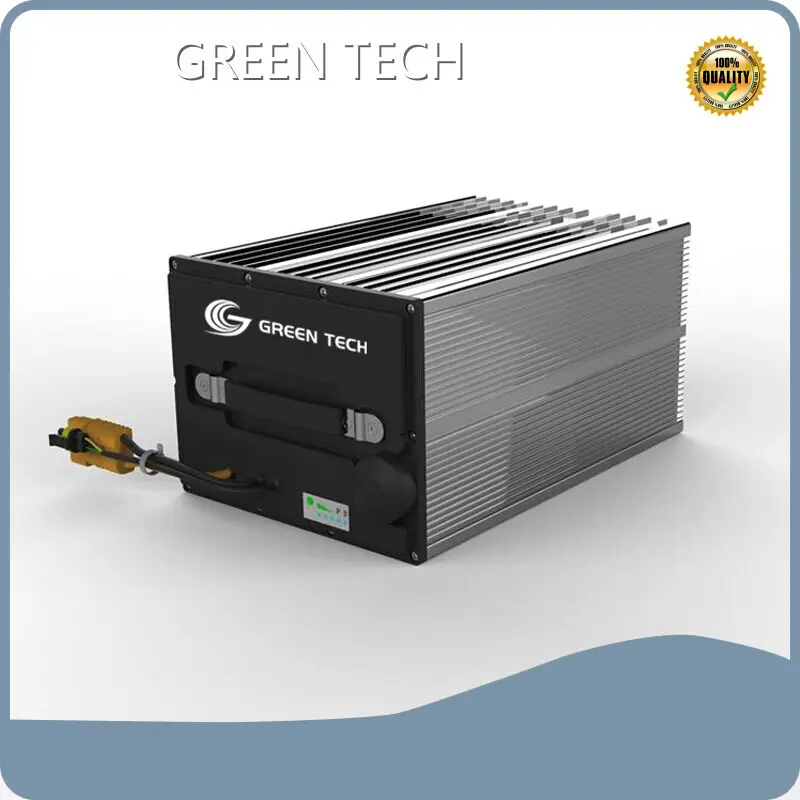

Deep Cycle Marine Battery 71.4Vdc Wholesale -

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-60V1560-M
Energy storage	1560Wh
Nominal Voltage	60Vdc
Maximum Charge Voltage	71.4Vdc
Discharge Cut-off Voltage	47.6Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	20kg
Dimensions(WxDxH)	230x180x360(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· deep cycle marine battery is precision-designed with the of our professionals with sharp observation.

· The highest international quality standards are applied in its production.

· The product has a large customer base and a huge market development space.

Company Features

· is a well-known Chinese company engaged in the development, manufacture, distribution, and marketing of high-quality deep cycle marine battery.

· Our deep cycle marine battery can be used for multiple purposes.

· Regarding the principle of 'wholeheartedly serve every customer' as the base, that is, by offering professional and sincere services to our customers, we will work hard to be a leader in the deep cycle marine battery industry internationally.

Application of the Product

The deep cycle marine battery produced by has a wide range of applications.

always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
