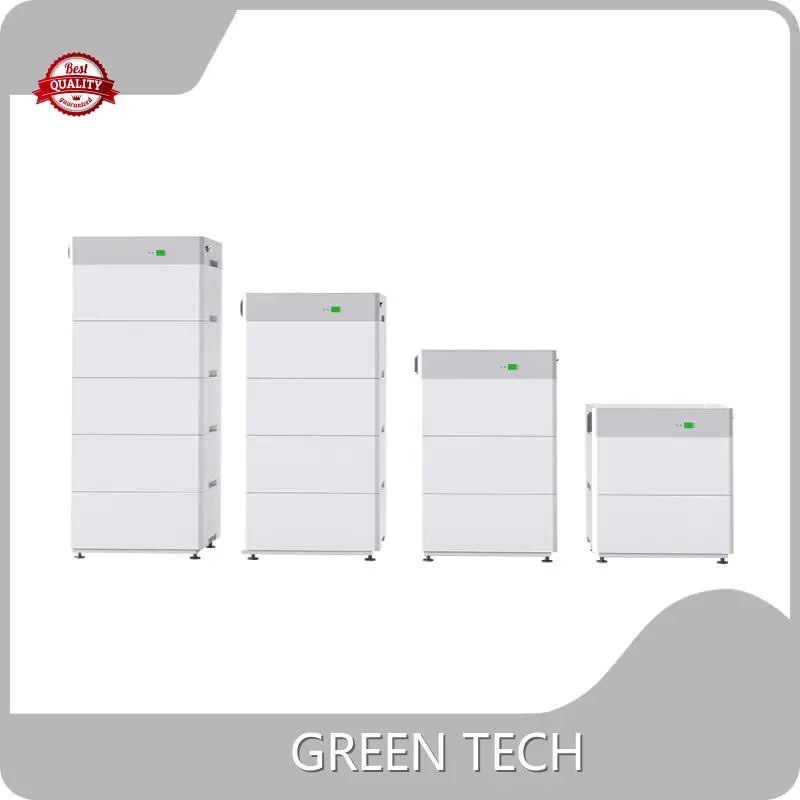

Electrical Energy Storage System 10kWh - for Aquariums - 1

Electrical Energy Storage System 10kWh - for Aquariums - 2

Electrical Energy Storage System 10kWh - for Aquariums - 3

Electrical Energy Storage System 10kWh - for Aquariums - 4

Electrical Energy Storage System 10kWh - for Aquariums -

Part Number:

GTEF-205V10K-S

Nominal Voltage:

204.8Vd.c

Maximum Charge Voltage:

230.4Vd.c

Energy storage:

10kWh

Discharge Cut-off Voltage:

179.2Vd.c

Inquiry

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-205V10K-S	GTEF-307V15K-S	GTEF-410V20K-S	GTEF-512V25K-S	GTEF-614V30K-S
Energy storage	10kWh	15kWh	20kWh	25kWh	30kWh
Number of series modules	2	3	4	5	6
Nominal Voltage	204.8Vd.c	307.2Vd.c	409.6Vd.c	512Vd.c	614.4Vd.c
Maximum Charge Voltage	230.4Vd.c	345.6Vd.c	460.8Vd.c	576Vd.c	691.2Vd.c
Discharge Cut-off Voltage	179.2Vd.c	268.8Vd.c	358.4Vd.c	448Vd.c	537.6Vd.c
ESR/AC @1KHz 50% SOC	＜100mΩ	＜140mΩ	＜180mΩ	＜220mΩ	＜260mΩ
Max. Continuous Power	5kW	7.5kW	10kW	12.5kW	15kW
Weight	90kg	130kg	170kg	210kg	250kg
Max. Continuous Charge Current	25A	25A	25A	25A	25A
Max. Continuous Discharge Current	25A	25A	25A	25A	25A
Nominal Capacity	52Ah	52Ah	52Ah	52Ah	52Ah
Communication Way	CAN	CAN	CAN	CAN	CAN
Monitoring Data	System voltage, current, temperature, SOC, SOH, cell voltage.
Projected Cycle Life ( 25℃)	10000 times(70%EOL)
Recommended Depth of Discharge	≤90%	≤90%	≤90%	≤90%	≤90%
Maximum Depth of Discharge	100%	100%	100%	100%	100%
Environmental Protection	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor
Shell Material	Metal	Metal	Metal	Metal	Metal
Parallel Connection optional	If connect in Parallel connection, pls inform before order confirmation

Company Advantages

· Manufactured using supreme quality raw material and the most advanced techniques, electrical energy storage system shows fine craftsmanship.

· The product has received many international certifications, which is a strong proof of its high quality and high performance.

· can provide relative quality tests for electrical energy storage system to prove its quality.

Company Features

· is a company integrating the production and sales of electrical energy storage system.

· continuously improves its quality management system to achieve excellence, innovation, and customer satisfaction.

· has faith in perfect after-sales service will help company to win the recognition of customers. Inquiry!

Application of the Product

Our electrical energy storage system has been widely used in many industries.

With a focus on customers' potential needs, has the ability to provide one-stop solutions.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
