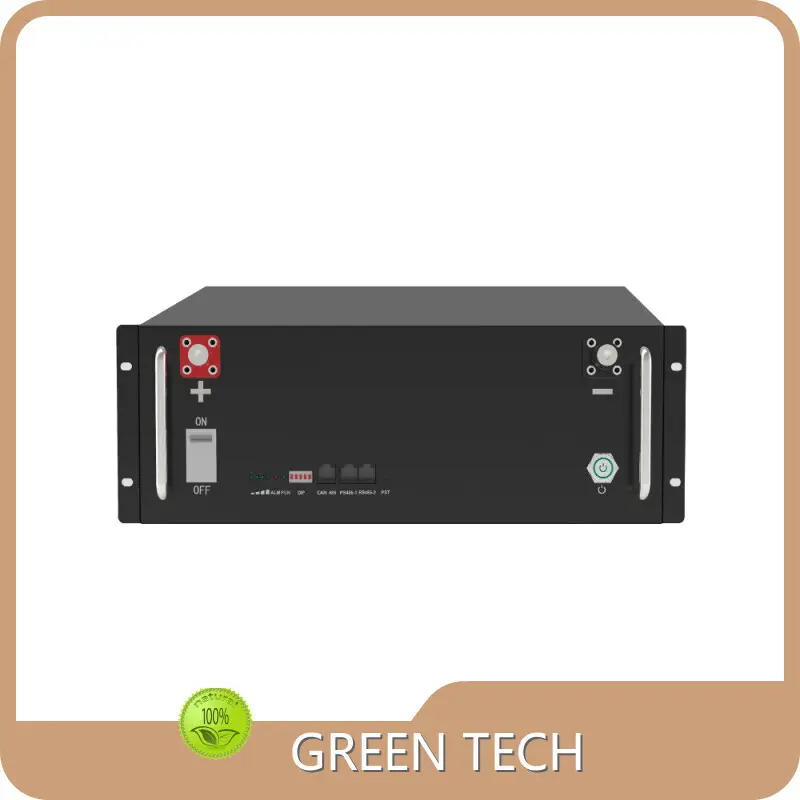

Electrical Energy Storage System 51.2Vdc - for Apartment - 1
Electrical Energy Storage System 51.2Vdc - for Apartment - 2
Electrical Energy Storage System 51.2Vdc - for Apartment - 1
Electrical Energy Storage System 51.2Vdc - for Apartment - 2

Electrical Energy Storage System 51.2Vdc - for Apartment -

Nominal Voltage:
51.2Vdc
Maximum Charge Voltage:
57Vdc
Max. Continuous Discharge Current:
100A
Max. Continuous Charge Current:
80A
Energy storage:
5.12kWh
Inquiry
Send your inquiry

Product details of the electrical energy storage system


Product Information

We can customize shapes for our electrical energy storage system. The product is totally inspected by our QC team with their dedication to high quality. The crafts of electrical energy storage system is exquisite which also ensures the high quality.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEF-48V5000-E

Energy storage

5.12kWh

Nominal Voltage

51.2Vdc

Maximum Charge Voltage

57Vdc

Discharge Cut-off Voltage

45Vdc

ESR/AC @1KHz 50% SOC

<12mΩ

Max. Continuous Charge Current

80A

Max. Continuous Discharge Current

100A

Cooling Method

Natural

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

10,000 times

Recommended Depth of Discharge

5%~90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

SOC,voltage,current, temperature

Series Connection

Not allowed

Parallel Connection

Up to 16sets

Series-Parallel Connection

Not allowed

Weight

50kg

Dimensions(WxDxH)

440x510x160(mm)

Mount Options

On floor
