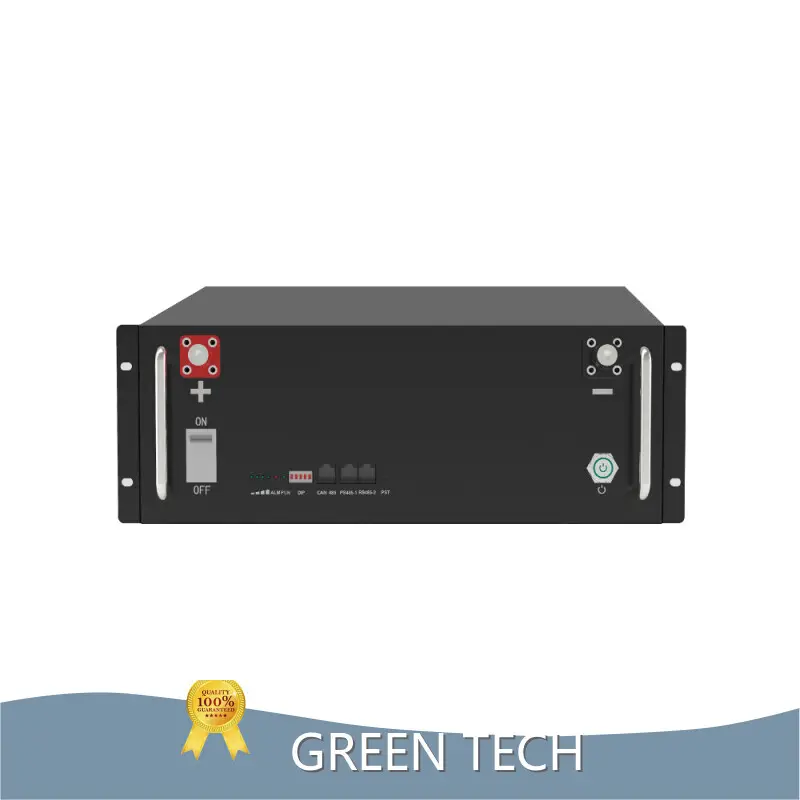

Factory Direct Electrical Energy Storage System Manufacture

Product details of the electrical energy storage system

Product Information

electrical energy storage system can be said to be unique in design. The latest technology ensures electrical energy storage system's perfect product performance. The devotion to the quality of electrical energy storage system helps to be a leading manufacturer in the industry.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V7500-E
Energy storage	7.5kWh
Nominal Voltage	51.8Vdc
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	42Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Cooling Method	Natural
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage, current, temperature, SOC, SOH, cycle, cell's voltage
Series Connection	Not allowed
Parallel Connection	Up to 16 sets
Series-Parallel Connection	Not allowed

Weight	72kg
Dimensions(WxDxH)	475x685x177(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V7.5kWh Capess

Company Advantage

• With a focus on service, improves services by constantly innovating service management. This specifically reflects in the establishment and improvement of the service system, including pre-sales, in-sales, and after-sales.
• During the development for years, has made outstanding achievements and has taken an advantageous position in the industry.
• products are sold well in China, Africa, Europe, Southeast Asia, and other regions, and are highly praised by domestic and foreign customers.
• With good location advantages, the open and easy traffic serves as the foundation for development.
If you want to purchase our products in bulk, feel free to contact us.
