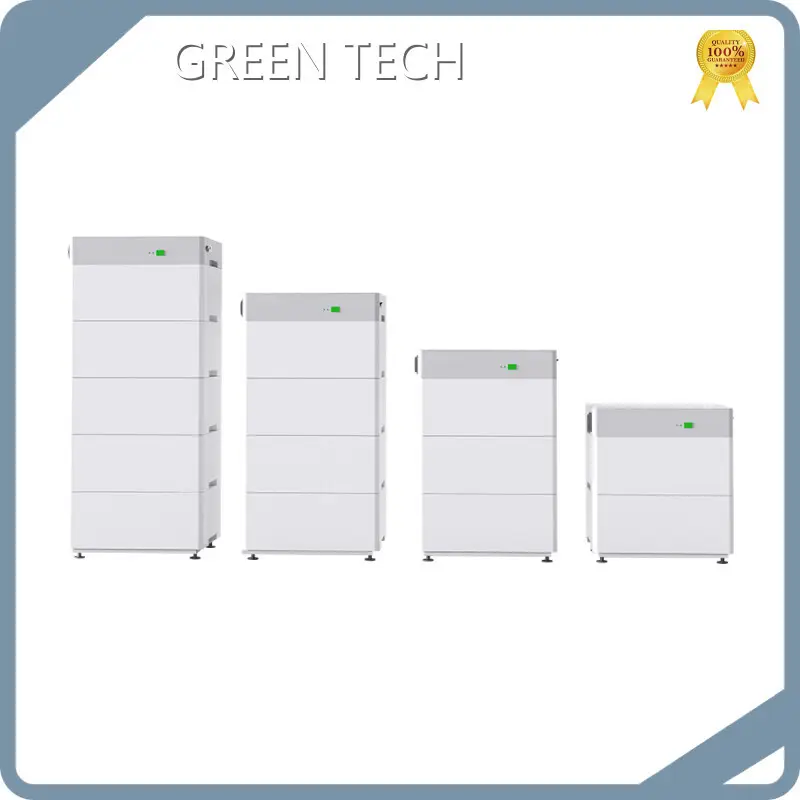

Good Selling Graphene Battery Ev 25A Company 1

Good Selling Graphene Battery Ev 25A Company 2

Good Selling Graphene Battery Ev 25A Company 3

Good Selling Graphene Battery Ev 25A Company 4

Good Selling Graphene Battery Ev 25A Company

Series:

EF Series

Maximum Charge Voltage:

230.4Vd.c

Max. Continuous Discharge Current:

25A

Energy storage:

10kWh

Dimensions(WxDxH):

480x520x160(mm)

Inquiry

more products

Send your inquiry

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-205V10K-S	GTEF-307V15K-S	GTEF-410V20K-S	GTEF-512V25K-S	GTEF-614V30K-S
Energy storage	10kWh	15kWh	20kWh	25kWh	30kWh
Number of series modules	2	3	4	5	6
Nominal Voltage	204.8Vd.c	307.2Vd.c	409.6Vd.c	512Vd.c	614.4Vd.c
Maximum Charge Voltage	230.4Vd.c	345.6Vd.c	460.8Vd.c	576Vd.c	691.2Vd.c
Discharge Cut-off Voltage	179.2Vd.c	268.8Vd.c	358.4Vd.c	448Vd.c	537.6Vd.c
ESR/AC @1KHz 50% SOC	＜100mΩ	＜140mΩ	＜180mΩ	＜220mΩ	＜260mΩ
Max. Continuous Power	5kW	7.5kW	10kW	12.5kW	15kW
Weight	90kg	130kg	170kg	210kg	250kg
Max. Continuous Charge Current	25A	25A	25A	25A	25A
Max. Continuous Discharge Current	25A	25A	25A	25A	25A
Nominal Capacity	52Ah	52Ah	52Ah	52Ah	52Ah
Communication Way	CAN	CAN	CAN	CAN	CAN
Monitoring Data	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.
Projected Cycle Life ( 25℃)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)
Recommended Depth of Discharge	≤90%	≤90%	≤90%	≤90%	≤90%
Maximum Depth of Discharge	100%	100%	100%	100%	100%
Environmental Protection	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor
Shell Material	Metal	Metal	Metal	Metal	Metal
Parallel Connection optional	Not allowed	Not allowed	Not allowed	Not allowed	Not allowed

Company Advantages

· graphene battery ev is manufactured under the international guidelines.

· Careful inspection is conducted before the actual outsourcing of the products in the market.

· has excellent manufacturing capabilities and product development capabilities for graphene battery ev.

Company Features

· As an industry advanced company, owns a good reputation in developing, manufacturing, and marketing graphene battery ev.

· With our own design and R&D team, as well as sample makers, the company is able to catch up with the latest market trends in the graphene battery ev industry and better meet customers' requirements.

· Quality and service are the first for our company. They push the pace of our work. Our expectations of ourselves are always higher than our customers. Welcome to visit our factory!

Application of the Product

The graphene battery ev produced by has a wide range of applications.

has rich experience in the industry and we are sensitive about customers' needs. Therefore, we can provide comprehensive one-stop solutions based on customers' actual situations.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
