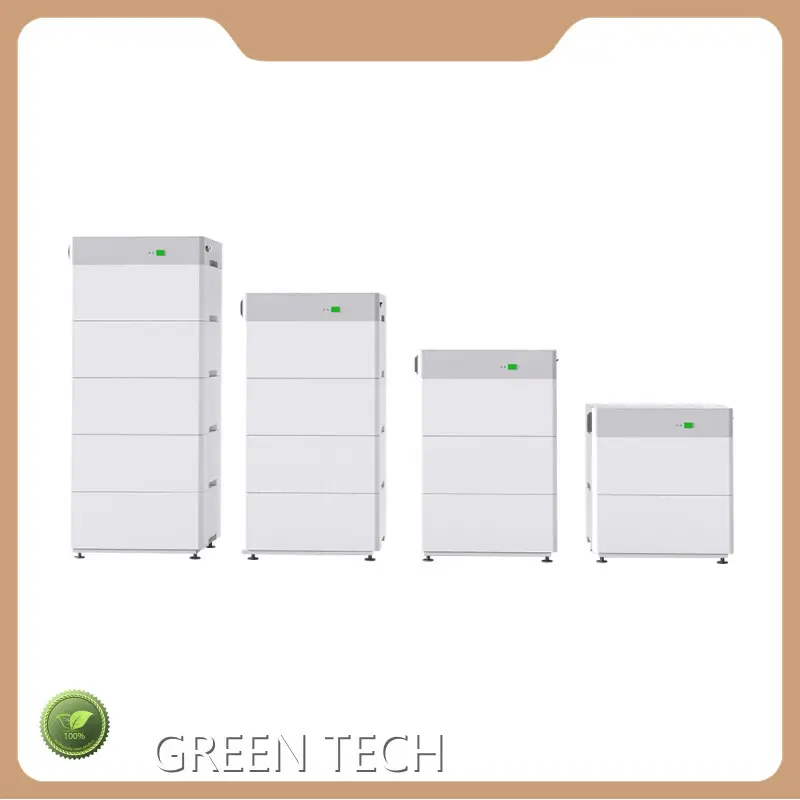

Graphene Batteries for Electric Cars GTEF-205V10K-S - for Business - 1

Graphene Batteries for Electric Cars GTEF-205V10K-S - for Business - 2

Graphene Batteries for Electric Cars GTEF-205V10K-S - for Business - 3

Graphene Batteries for Electric Cars GTEF-205V10K-S - for Business - 4

Graphene Batteries for Electric Cars GTEF-205V10K-S - for Business -

Part Number:

GTEF-205V10K-S

Nominal Voltage:

204.8Vd.c

Maximum Charge Voltage:

230.4Vd.c

Max. Continuous Discharge Current:

25A

Dimensions(WxDxH):

480x520x160(mm)

Inquiry

more products

Send your inquiry

Company Advantages

· The raw materials of graphene batteries for electric cars are superior and environmentally-friendly.

· Equipped with advanced facilities, we focus more on the quality assurance.

· The service provided by has shown its care and consideration to customers.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-205V10K-S	GTEF-307V15K-S	GTEF-410V20K-S	GTEF-512V25K-S	GTEF-614V30K-S
Energy storage	10kWh	15kWh	20kWh	25kWh	30kWh
Number of series modules	2	3	4	5	6
Nominal Voltage	204.8Vd.c	307.2Vd.c	409.6Vd.c	512Vd.c	614.4Vd.c
Maximum Charge Voltage	230.4Vd.c	345.6Vd.c	460.8Vd.c	576Vd.c	691.2Vd.c
Discharge Cut-off Voltage	179.2Vd.c	268.8Vd.c	358.4Vd.c	448Vd.c	537.6Vd.c
ESR/AC @1KHz 50% SOC	＜100mΩ	＜140mΩ	＜180mΩ	＜220mΩ	＜260mΩ
Max. Continuous Power	5kW	7.5kW	10kW	12.5kW	15kW
Weight	90kg	130kg	170kg	210kg	250kg
Max. Continuous Charge Current	25A	25A	25A	25A	25A
Max. Continuous Discharge Current	25A	25A	25A	25A	25A
Nominal Capacity	52Ah	52Ah	52Ah	52Ah	52Ah
Communication Way	CAN	CAN	CAN	CAN	CAN
Monitoring Data	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.
Projected Cycle Life ( 25℃)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)
Recommended Depth of Discharge	≤90%	≤90%	≤90%	≤90%	≤90%
Maximum Depth of Discharge	100%	100%	100%	100%	100%
Environmental Protection	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor
Shell Material	Metal	Metal	Metal	Metal	Metal
Parallel Connection optional	Not allowed	Not allowed	Not allowed	Not allowed	Not allowed

Company Features

· is the first factory in China and even in the world to provide graphene batteries for electric cars.

· We have a project management team. The team members have abilities in various fields, such as project planning, quality assurance, quality control, performance review, and budget planning. All these abilities are crucial for providing professional products such as graphene batteries for electric cars for customers.

· We strive to make our business activities socially sustainable. We will earnestly implement our environmental protection plans. For example, we will upgrade the waste treatment efficiency, introducing advanced manufacturing machines that are more efficient in resources utilization.

Product Comparison

graphene batteries for electric cars has the following advantages over products in the same category.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
