Graphene Batteries in Cars Brand

Company Advantages

· Our graphene batteries in cars has scientific structure and excellent design.

· This product possesses a rigid skeleton because of its original function. It is designed for a life in a marine environment and is manufactured accordingly.

· is proud of its longstanding leadership in innovation and quality.

Inverters 6kW-8kW-10kW

	Parameter		GT-EST06KH	GT-EST08KH	GT-EST10KH
Efficiency	Max Efficiency		>98 2%	>98 2%	>98 2%
PV Input	Max. PV input power(W)		7800	10400	13000
	Max. PV input voltage(V)		1000	1000	1000
	MPPT Operation Voltage Range (V)		180-950	180-950	180-950
	Number of MPPT/PV Strings		2/1	2/1	2/1
	Max. PV input current(A)		15/15	15/15	15/15
	Short- circuit current of PV input( A)		18/18	18/18	18/18
Battery	Max Input/Output Voltage(V)		550	550	550
	Operating Voltage Range(V)		180-550	180-550	180-550
	Max Charge/Discharge Current(A)		25/30	25/30	25/30
	Max Input/Output Power(W)		6000/6000	8000/8000	10000/10000
	Battery Type		Li-ion/Lead-acid
AC Input and Output	Rated Power(W)		6000	8000	10000
	Max. Apparent AC Power(VA)		6000	8000	10000
	Nominal AC Voltage(Vac)		380,3L/N/PE	380,3L/N/PE	380,3L/N/PE
	AC Power Frequency ( Hz)		50/60	50/60	50/60
	Max. AC Output Current(A)		10	12	15
	Power Factor Range		~1 (Adjusta	ble from 0.8 leading	to 0.8 lagging)
	OutputTHDi(@Nominal Output)		<3%	<3%	<3%
Genaral Data	Operating Temperature		-25C …+60C(>45C derating)
	Range Topology		Transformerless
	Cooling Method		Natural convection
	Ingress Protection Rating		IP65
	Relative Humidity		0-100%, no condensation
	DC Connection Type		MC/ Amphenol/ Phoenix
	AC Connection Type		Plug-in Connector
	Display		LCD
	Communication With Portal		RS485 (WiFi/GPRS Optinal)
	Communication With BMS		CAN
	Communication With Meter		RS485
Certification	Safety		IEC62109-1/-2
	EMC		EN61000-6-1/-2/-3,IEC61000
	On- Grid standard		AS4777.2:2020 ，NRS097-2-1:2017 ，PN-EN50549-1:2019,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2019-4

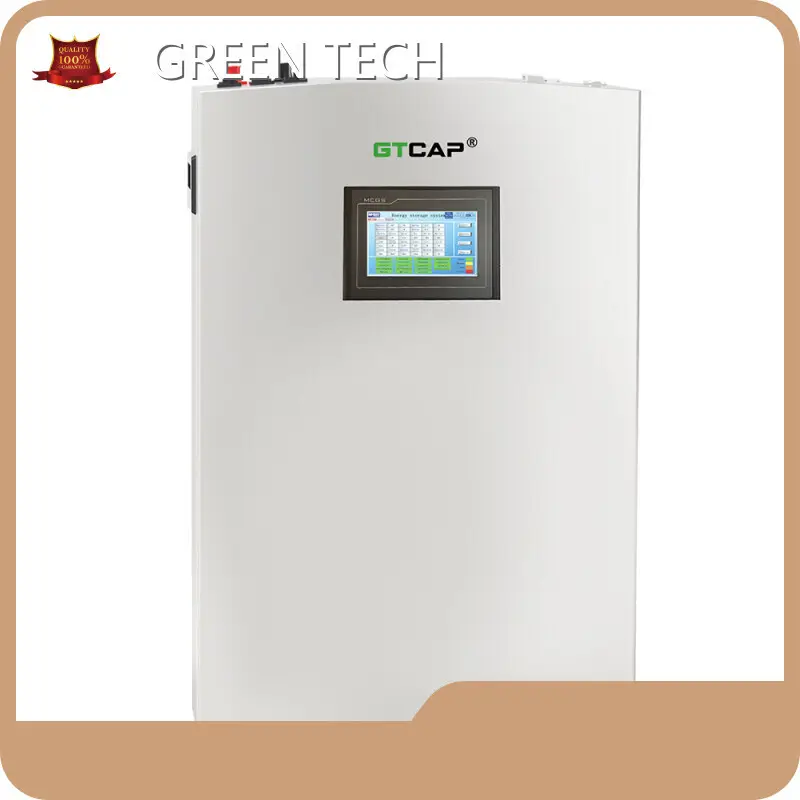

Battery energy storage system Capwall 400V14.4kWh/345V10kWh

Part Number	GTEM-400V14.4K-W	GTEF-345V10K-W
Energy storage	14.4kWh	10.3kWh
Nominal Voltage	400V/DC	345.6V/DC
Maximum Charge Voltage	453V/DC	390V/DC
Discharge Cut-off Voltage	292V/DC	300V/DC
ESR/AC @1KHz 50% SOC	<150mΩ 50A	<100mΩ 15A
Max. Continuous Charge Current	50A	15A
Max. Continuous Discharge Current	50A	30A
Round Trip Efficiency	96%	97.7%
Charge Temperature	0 C~ + 5 5 C	0 C~ + 4 5 C
Discharge Temperature	-20C~+60C	-30C~+60C
Self- discharge Rate	2% per month	2% per month
Recommended Depth of Discharge	≤90%	≤90%
Maximum Depth of Discharge	100%	100%
Cooling Method	Natural	Natural
Mounting Options	Wall/floor	Wall/floor
Shell Material	Metal & ABS plastic	Metal & ABS plastic
Communication	CANbus	CAN,RS485
Monitoring Data	System voltage,current,temperature,SOC,SOH,cycle,cell’s voltage
Compliance Information
Certificate Options	IEC62619:2017,IEC62040, EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017,EN 61000-3-2:2014,  EN 61000-3-3:2013,  RoHS, UN38.3, MSDS

Solar Panel 390-415W

STC*

NOCT*

STC*

Thermal characteristics

Module type			YLxxxDF54e/2(xxx=Pmax)
Power output	Pmax	W	390	395	400	405	410	415
Power output tolerances	△Pmax	W				0/+5
Module efficiency	ηm	%	19.97	20.23	20.48	20.74	21.00	21.25
Voltage at Pmax	Vmpp	V	30.27	30.42	30.56	30.71	30.86	31.00
Current at Pmax	Impp	A	12.89	12.99	13.09	13.19	13.29	13.39
Open-circuit voltage	Vac	V	36.80	36.90	37.00	37.10	37.20	37.30
Short-circuit voltage	Isc	A	13.68	13.77	13.86	13.95	14.04	14.13

*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3

Power output	ηm	%	296.85	300.63	304.34	308.17	312.03	315.80
Voltage at Pmax	Vmpp	V	28.87	29.01	29.01	29.14	29.43	29.56
Current at Pmax	Impp	A	10.28	10.36	10.44	10.52	10.60	10.68
Open- circuit voltage	Voc	V	34.98	35.08	35.17	35.27	35.36	35.46
Short- circuit voltage	Isc	A	11.02	11.09	11.17	11.24	11.31	11.38

*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.

Power output	Pmax	%	426.86	432.33	437.80	443.27	448.75	454.22
Voltage at Pmax	Vmpp	V	30.27	30.42	30.56	30.71	30.86	31.00
Current at Pmax	Impp	A	14.10	14.21	14.33	14.43	14.54	14.65
Open- circuit voltage	Voc	V	36.80	36.90	37.00	37.10	37.20	37.30
Short- circuit voltage	Isc	A	14.97	15.07	15.17	15.27	15.37	15.47

*Bifaciality coefficient is 70% ±5%，rear irradiance is 135W.m-2

Nominal operating cell temperature	NOCT	C	39±2
Temperature coefficient of Pmax	γ	% / C	-0.35
Temperature coefficient of Voc	β	% / C	-0.28 0.05

*Bifaciality coefficient is 70% ±5%，rear irradiance is 135W.m-2

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

All-high

Company Features

· Having surpassed a majority of the graphene batteries in cars manufacturers, still spares no efforts to be a player of great significance to the world.

· has introduced and absorbed advanced technology for graphene batteries in cars production. has accelerated enterprise development and cultivated independent R&D capability over the years. has fostered its own research and development capabilities in graphene batteries in cars field.

· We set high demands for ourselves and proud of ourselves for have been providing the best-in-class to customers.

Product Details

will present you graphene batteries in cars's details in the following section.

Application of the Product

Our graphene batteries in cars is widely used in multiple industries and fields.

can provide customers with one-stop solutions of high quality, and meet customers' needs to the greatest extent.

Product Comparison

graphene batteries in cars in has the following advantages, compared with same kind of products in the market.

Enterprise Advantages

talent team is a solid foundation for our company's development. There are professional talents in R&D and management as well as production personnel in the team. And they are passionate, united, and efficient.

Based on the principle of 'customer first', our company is committed to providing quality and perfect service for customers.

'Customer first, service with heart' is our development concept and 'unity, innovation, pragmatism, progress' is our unswerving pursuit.

was founded in In the past years, we have constantly innovated our business philosophy and strengthening management. We have also improved production technology. All these ensure that we can provide more and better products and services.

In addition to the nationwide sales network, also actively expands the foreign market.
