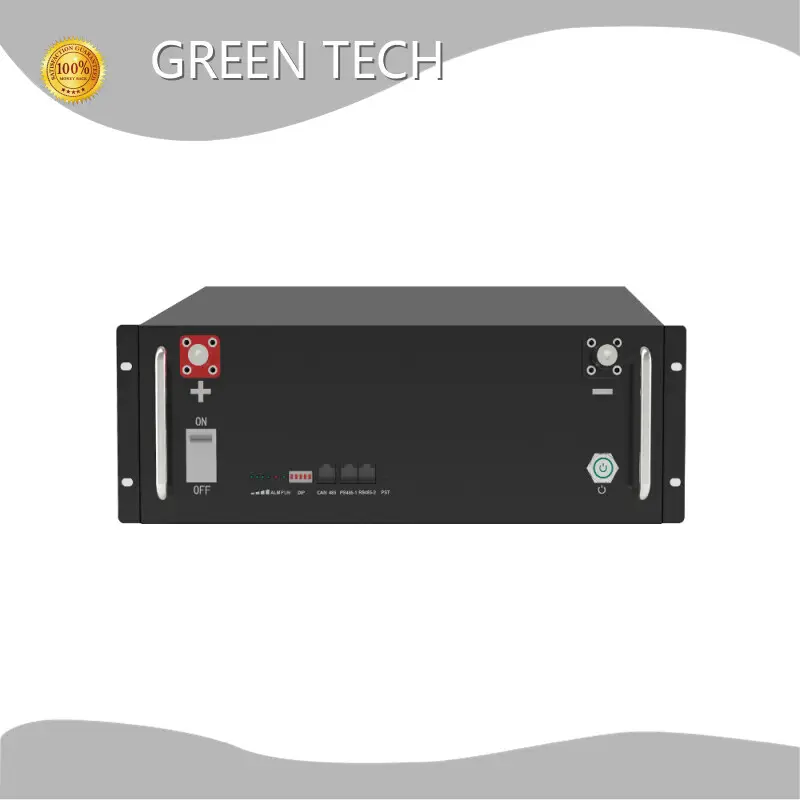

Product details of the graphene battery ev
Product Introduction
The design of graphene battery ev sticks up with the current market trend. The defective product will not be sent to customers thanks to the strict quality control. has carried out industrialization for its patent and technology.
Part Number |
GTEF-48V5000-E |
5.12kWh |
|
Nominal Voltage |
51.2Vdc |
Maximum Charge Voltage |
57Vdc |
Discharge Cut-off Voltage |
45Vdc |
ESR/AC @1KHz 50% SOC |
<12mΩ |
Max. Continuous Charge Current |
80A |
Max. Continuous Discharge Current |
100A |
Cooling Method |
Natural |
Cells Self-discharge Rate |
2% per month |
Projected Cycle Life ( 25℃) |
10,000 times |
Recommended Depth of Discharge |
5%~90% |
Maximum Depth of Discharge |
100% |
Shell Material |
Metal & ABS plastic |
Monitoring Data |
SOC,voltage,current, temperature |
Series Connection |
Not allowed |
Parallel Connection |
Up to 16sets |
Series-Parallel Connection |
Not allowed |
Weight |
50kg |
Dimensions(WxDxH) |
440x510x160(mm) |
Mount Options |
On floor |
Company Feature
• was established in After years of dedicated management, we run a relatively comprehensive quality and service management system. Now we have the ability to provide our clients with quality products and services.
• Our company has a high-quality talent team integrating R&D, technology and management. It is of great importance for our long-term development.
• Our company actively applies the 'Internet +' thinking to the business operation. We arrange online and offline all-round layout and we combine the online e-commerce platform sales with offline franchise business model. So the annual sales volume of the products increases rapidly, and the sales range is getting wider and wider.
is a manufacturer engaged in the production of Our products are of good quality and affordable price. If you have any needs, feel free to call us.
