Graphene Battery Ev Manufacture 42Vdc

Product Parameters

General Characteristics

Mechanical Specifications

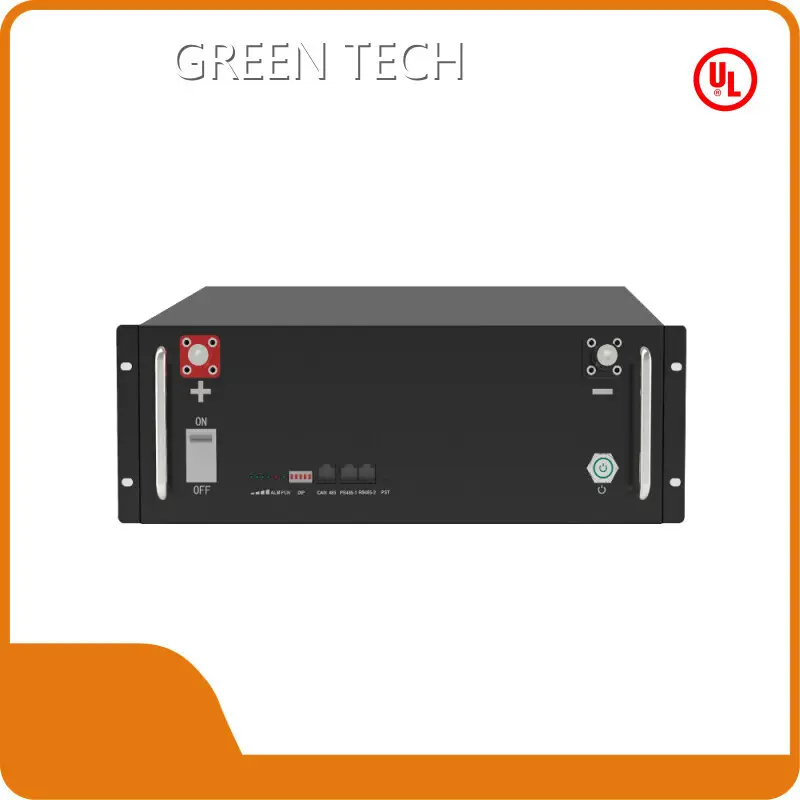

Part Number	GTEM-48V7500-E
Energy storage	7.5kWh
Nominal Voltage	51.8Vdc
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	42Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Cooling Method	Natural
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage, current, temperature, SOC, SOH, cycle, cell's voltage
Series Connection	Not allowed
Parallel Connection	Up to 16 sets
Series-Parallel Connection	Not allowed

Weight	72kg
Dimensions(WxDxH)	475x685x177(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V7.5kWh Capess

Company Advantages

· The whole production process of graphene battery ev is guided and supervised by experienced professionals.

· It is warranted to be free from defects in quality and performance.

· always puts quality first and customer foremost in the first place.

Company Features

· is a famous and professional manufacturer for graphene battery ev.

· upgrades itself through the extensive deployment of advanced technologies and applications.

· will continuously enhance the core competitiveness.

Application of the Product

graphene battery ev can meet the different needs of customers.

Based on customers' specific situations and needs, provides comprehensive and reasonable solutions.
