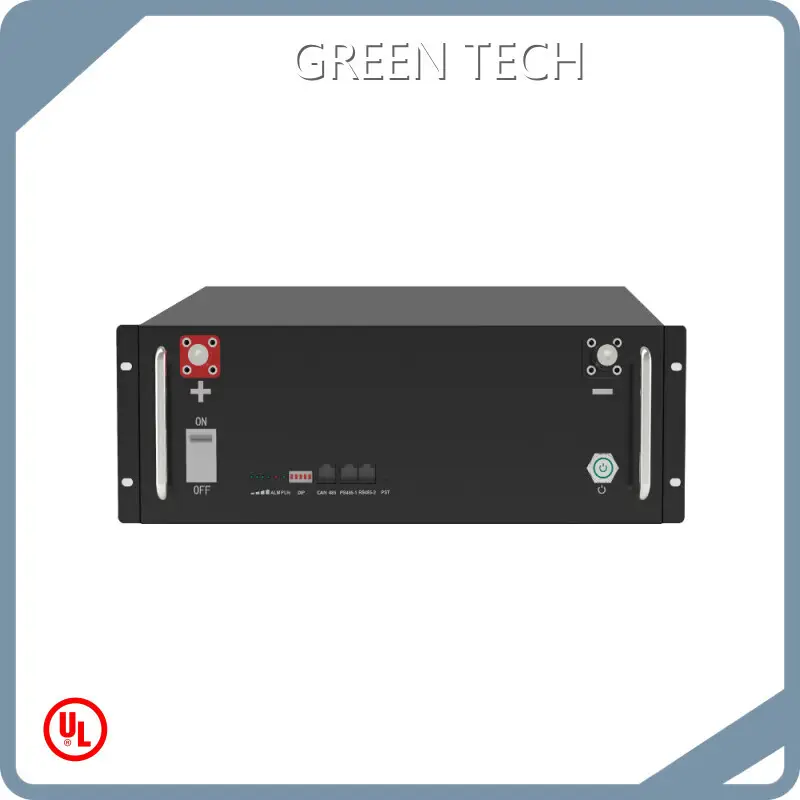

Graphene Battery Technology Bulk Buy Capess Series

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-48V5000-E
Energy storage	5.0kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	37.8Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Peak Current	208A
Cooling Method	Natural
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Up to 10sets
Series-Parallel Connection	Not allowed

Weight	62kg
Dimensions(WxDxH)	475x665x177(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· According to different price level, we use different level of material for graphene battery technology.

· The product has passed the accreditation of ISO9001 quality management system.

· appears to have secured competitive advantage in graphene battery technology markets.

Company Features

· As the front-runner in graphene battery technology industry, has been developing its own production capabilities.

· All the projects in are completed with 100% professionalism.

· From the close relationships with our clients, we gain an even better level of understanding about our their needs to develop more precise analyses to ensure we deliver the best possible service. Ask online!

Application of the Product

The graphene battery technology produced by our company can be applied to different fields and scenarios. So the different requirements of different people can be satisfied.

insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
