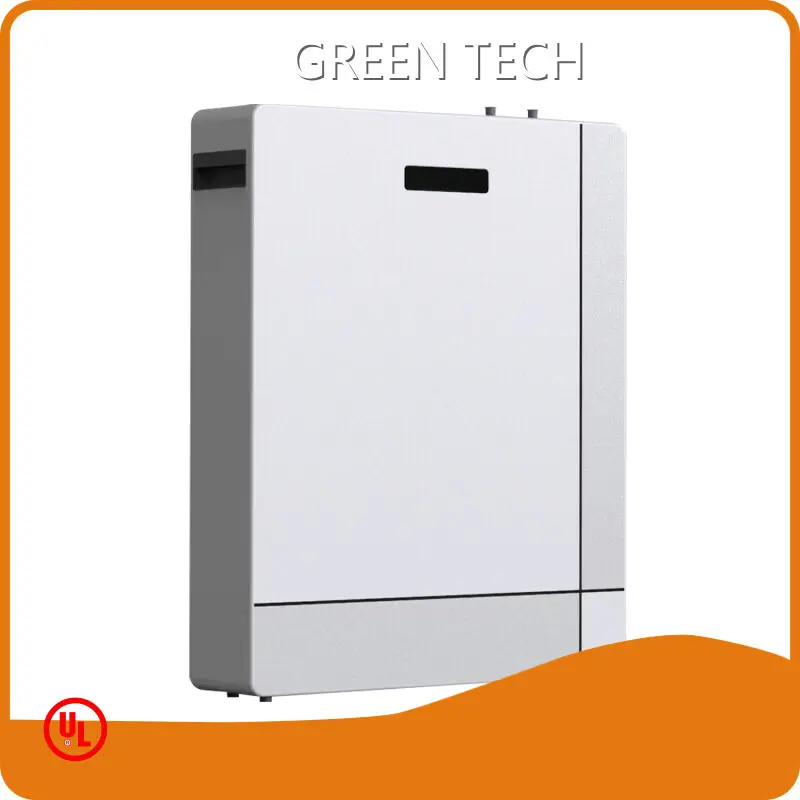

Home Energy Storage System 10kWh

Product details of the home energy storage system

Quick Overview

home energy storage system leads the industry in the progress of production. Quality, functionality and high standard are always the prime keywords in its production. Our home energy storage system is available in a wide range of applications. This product can serve well for customers in the industry based on a large user base.

Product Introduction

With the dedication to pursue excellence, strives for perfection in every detail.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-48V10K-W
Energy storage	10kWh
Nominal Voltage	51.2V/DC
Maximum Charge Voltage	57V/DC
Discharge Cut-off Voltage	44V/DC
ESR/AC @1KHz 50% SOC	<9mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	10000 times
Round Trip Efficiency*1	97.7%
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Up to 16 sets
Monitoring Data	System voltage, current, temperature, SOC, SOH, cycle, cell's voltage

Weight	117kg
Dimensions(WxDxH)	640x887x180(mm)
Mount Options	Wall/ floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Introduction

As one of the most accepted manufacturers of home energy storage system in the industry, has become the preferred choice when it comes to manufacturing capacities. GREEN TECH adopts advanced product process from other countries. Our business goal is to help our customers overcome their most complex challenges. We achieve this by turning customer feedback into actions that drive improvements in the way we serve our customers.
Look forward to working with you to create a better future.
