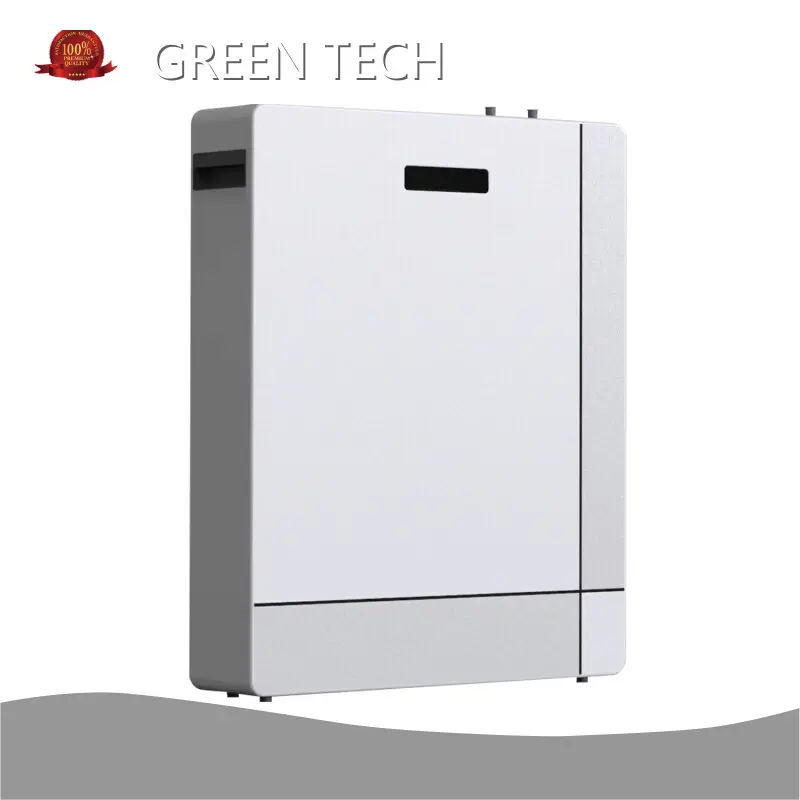

Low-costbattery Energy Storage System Manufacture

Series:
Capwall Series
Maximum Charge Voltage:
57V/DC
Max. Continuous Discharge Current:
100A
Discharge Cut-off Voltage:
44V/DC
Dimensions(WxDxH):
640x887x180(mm)
Inquiry

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEF-48V10K-W

Energy storage

10kWh

Nominal Voltage

51.2V/DC

Maximum Charge Voltage

57V/DC

Discharge Cut-off Voltage

44V/DC

ESR/AC @1KHz 50% SOC

<9mΩ

Max. Continuous Charge Current

100A

Max. Continuous Discharge Current

100A

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

10000 times

Round Trip Efficiency*1

97.7%

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Cooling Method

Natural

Shell Material

Metal & ABS plastic

Parallel Connection

Up to 16 sets

Monitoring Data

System voltage, current, temperature, SOC, SOH, cycle, cell's voltage

Weight

117kg

Dimensions(WxDxH)

640x887x180(mm)

Mount Options

Wall/ floor

Certificate Options
1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)


Company Advantages

· The superior design of battery energy storage system shows the great creativity of our designers.

· Strict quality standards have been set during the inspection process to ensure high quality products.

· It is well-known that has been developing wider sales network to spread its good quality battery energy storage system.


Company Features

· is a manufacturer of battery energy storage system. We have earned a reputation for our trusted manufacturing capabilities built on years of experience in the field.

· Our company has a strong R&D team with mature technology skills and rich experience in the battery energy storage system industry.

· aim is to be the first company to break into emerging markets. Get price!


Application of the Product

battery energy storage system can meet the different needs of customers.

Guided by the actual needs of customers, provides comprehensive, perfect and quality solutions based on the benefit of customers.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
