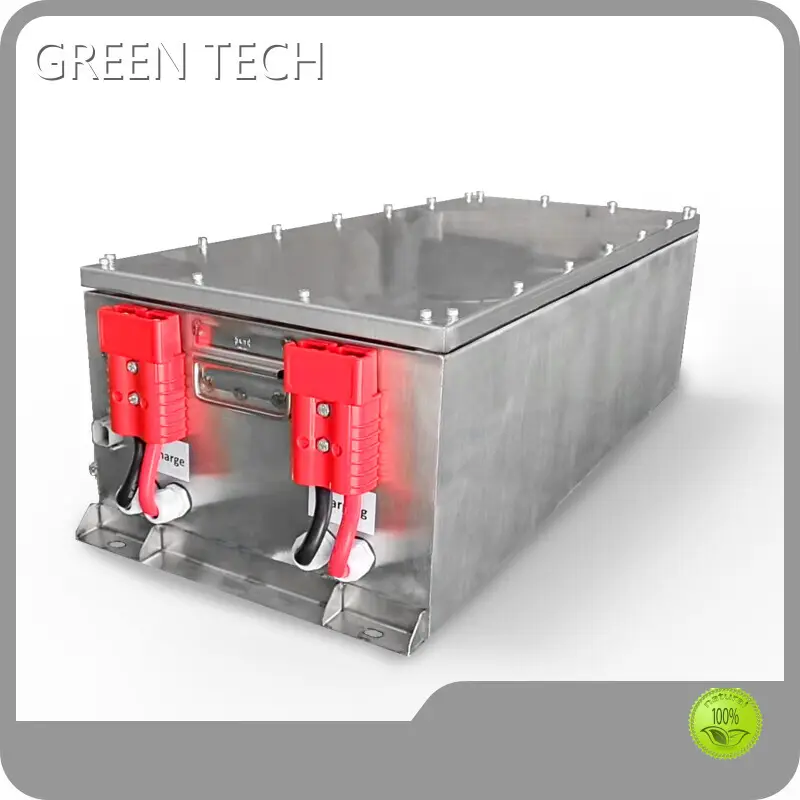

Quality Graphene Battery for Ev New Arrival for Wholesale

Product details of the graphene battery for ev

Product Description

graphene battery for ev is carefully crafted using the latest techniques in compliance with industry standards. This product delivers stable performance that customers require. The product is easily accepted by the customers due to a convenient sales network.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-96V20k-B
Energy storage	20kWh
Nominal Voltage	96Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	109.2Vdc
Discharge Cut-off Voltage	78Vdc
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	500A
Absolute Peak Current 10s	600A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP67
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	190kg
Dimensions(WxDxH)	810x550x500(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Feature

• products are favored by domestic and foreign customers.
• attaches great importance to talents cultivation. This is why we establish a talents team with rich industry experience in technology, management, sales, and business operation.
• Through the rapid development for years, has now developed into a modern enterprise with the scientific management system and superb processing technology.
• comprehensive service system covers from pre-sales to in-sales and after-sales. It guarantees that we can solve consumers' problems in time and protect their legal right.
Thanks for the attention. 39;s products are well-designed, cost-effective, safe and eco-friendly. Your order is warmly welcome and you can enjoy discounts on your first purchase!
