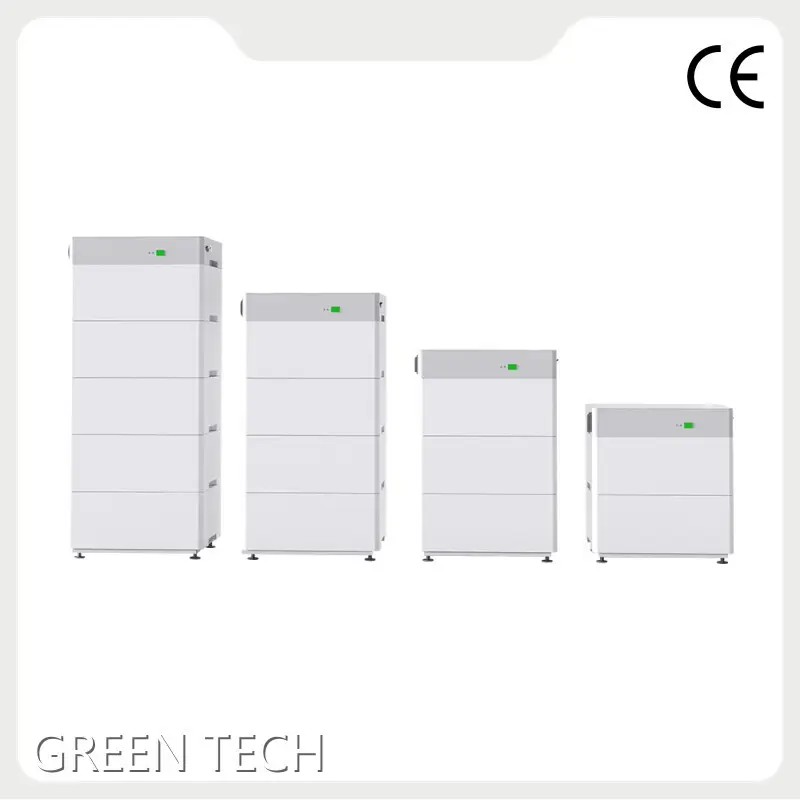

Solar Batteries for the Home for Business

Part Number:

GTEF-205V10K-S

Maximum Charge Voltage:

230.4Vd.c

Max. Continuous Discharge Current:

25A

Max. Continuous Charge Current:

25A

Energy storage:

10kWh

Inquiry

more products

Capwall

Graphene Supercapacitor Battery

Solid-state Supercapacitor Battery

Hybrid Inverter

Complete Residential Solar Power Systems

Send your inquiry

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-205V10K-S	GTEF-307V15K-S	GTEF-410V20K-S	GTEF-512V25K-S	GTEF-614V30K-S
Energy storage	10kWh	15kWh	20kWh	25kWh	30kWh
Number of series modules	2	3	4	5	6
Nominal Voltage	204.8Vd.c	307.2Vd.c	409.6Vd.c	512Vd.c	614.4Vd.c
Maximum Charge Voltage	230.4Vd.c	345.6Vd.c	460.8Vd.c	576Vd.c	691.2Vd.c
Discharge Cut-off Voltage	179.2Vd.c	268.8Vd.c	358.4Vd.c	448Vd.c	537.6Vd.c
ESR/AC @1KHz 50% SOC	＜100mΩ	＜140mΩ	＜180mΩ	＜220mΩ	＜260mΩ
Max. Continuous Power	5kW	7.5kW	10kW	12.5kW	15kW
Weight	90kg	130kg	170kg	210kg	250kg
Max. Continuous Charge Current	25A	25A	25A	25A	25A
Max. Continuous Discharge Current	25A	25A	25A	25A	25A
Nominal Capacity	52Ah	52Ah	52Ah	52Ah	52Ah
Communication Way	CAN	CAN	CAN	CAN	CAN
Monitoring Data	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.
Projected Cycle Life ( 25℃)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)
Recommended Depth of Discharge	≤90%	≤90%	≤90%	≤90%	≤90%
Maximum Depth of Discharge	100%	100%	100%	100%	100%
Environmental Protection	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor
Shell Material	Metal	Metal	Metal	Metal	Metal
Parallel Connection optional	Not allowed	Not allowed	Not allowed	Not allowed	Not allowed

Company Advantages

· The raw materials of solar batteries for the home are fully guaranteed by our materials department.

· The product has the quality that perfectly matches the customer's high requirements regarding durability and stability.

· Bearing the spirit of craftsmanship in mind, only offers the most delicate solar batteries for the home for you.

Company Features

· As one of the most well-known solar batteries for the home exporters, is going to increase its capacity and grow stronger.

· has a higher amount of solar batteries for the home production technologies.

· It’s no secret we strive for the best and this is why we do everything in house. Having control of our products from start to finish is important to us so we can make sure customers receive products just as we intended them. Inquire online!

Application of the Product

Multiple in function and wide in application, solar batteries for the home can be used in many industries and fields.

According to different needs of customers, we could customize comprehensive and efficient solutions for them.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
