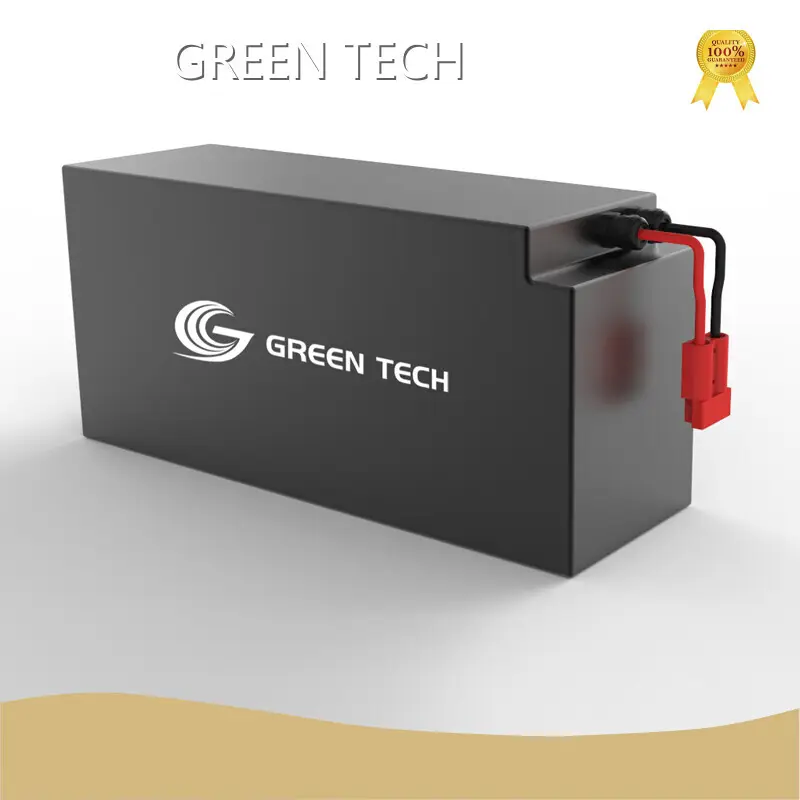

Solar Battery Energy Storage 140x430x200mm Company

Product details of the solar battery energy storage

Product Information

solar battery energy storage is produced by our trained professionals using high-grade raw material according to industry norms. Our products have been certified by many recognized standards, such as ISO quality standards. Our solar battery energy storage is popular in many overseas markets.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V2500-E
Energy storage	2.5kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<10Ω
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Round Trip Efficiency*1	96%
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell`s voltage

Weight	55kg
Dimensions(WxDxH)	140x430x200mm
Mount Options	Wall/ floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Feature

• Our company regards service as the basis of development. Therefore, we provide customers with more professional, more efficient and more satisfactory services by introducing high-quality talented people and continuously improving service level.
• Our company has a group of skilled R&D technical personnel and well-trained after-sales service personnel. They play a significant role in our company's sustainable development.
• After years of stable development, has gained a good recognition and support in the industry.
If you are interested in our electric equipment, please leave your contact information. will contact you for business cooperation!
