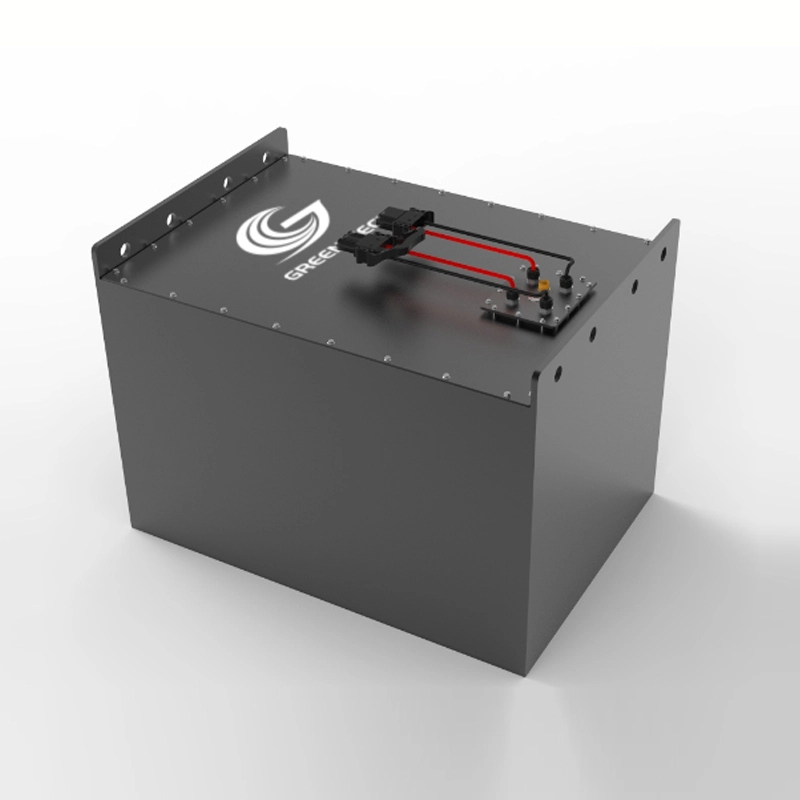

GTEM-48V30.24KWH Forklift battery

Forklift Battery 48V 30.24KWH

GTEM-48V30240-F

这里可以自定义设置
GTEM-48V30.24KWH Forklift battery
Graphene Ultracapacitor for Forklift battery
Highest energy transfer efficiency, fast rechargeable, safe and reliable graphene super capacitor, especially developed golf carts.
B站不支持收货地址
B站不支持库存规格
Part Number
GTEM-48V30240-F
Series:
EM Series
Nominal Voltage
48V/DC
Maximum Charge Voltage
58V/DC
Discharge Cut-off Voltage
40V/DC
Max. Continuous Charge Current
400A
Max. Continuous Discharge Current
400A
Energy storage
30.24KWh
Weight
960Kg
Dimensions(WxDxH)
965x670x700mm
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容

PRODUCT FEATURES

Graphene super capacitor cells

Fast rechargeable

Long life time

DoD up to 100%

  • Safest technology

  • Low self-discharge

Low maintenance

Environment friendly

GENERAL CHARACTERISTICS

Part Number

GTEM-48V30240-F

Energy storage

30.24KWh

Nominal Voltage

48V/DC

Maximum Charge Voltage

58V/DC

Discharge Cut-off Voltage

40V/DC

ESR/AC @1KHz 50% SOC

<50mΩ

Max. Continuous Charge Current

400A

Max. Continuous Discharge Current

400A

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Charge Temperature

0℃~+55℃

Discharge Temperature

-20℃~+60℃

Cooling Method

Natural

Shell Material

Metal & ABS plastic

Parallel Connection

Recommend within 10sets

Monitoring Data

SOC,voltage, module

MECHANICAL SPECIFICATIONS

Weight

960Kg

Dimensions(WxDxH)

965x670x700(mm)

Mount Options

Wall / floor
