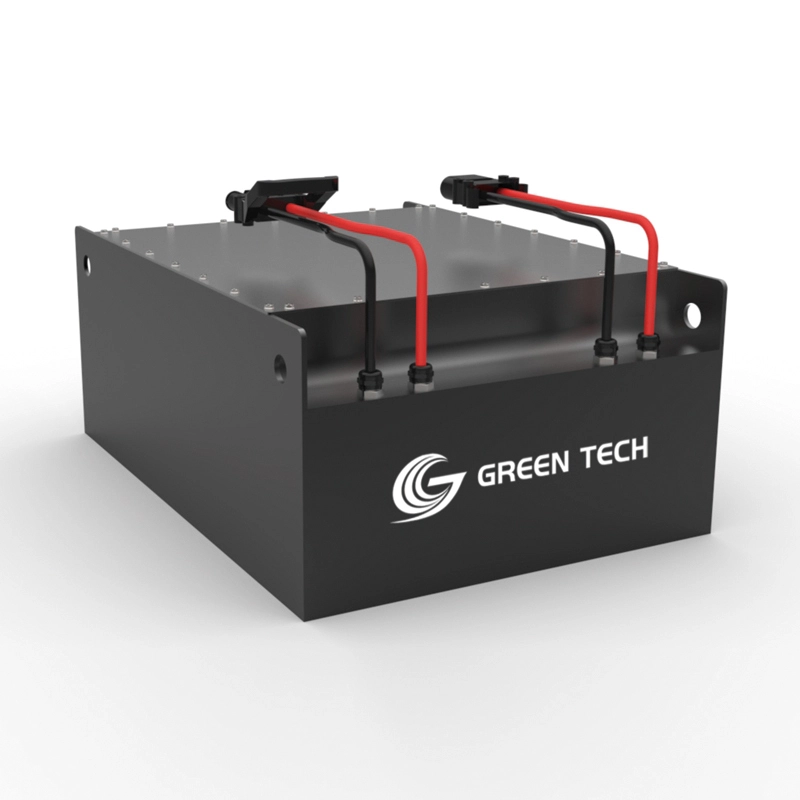

GTEM-48V20KWh Forklift battery
Graphene Ultracapacitor for Forklift battery
Highest energy transfer efficiency, fast rechargeable, safe and reliable graphene super capacitor battery, especially developed for forklifts, golf carts and AGV.
B站不支持收货地址
B站不支持库存规格
Part Number
GTPM-48V20K-F
Series:
EM Series
Nominal Voltage
48V/DC
Maximum Charge Voltage
58.8V/DC
Discharge Cut-off Voltage
37.8V/DC
Max. Continuous Charge Current
200A
Max. Continuous Discharge Current
200A
Energy storage
20KWh
Weight
400Kg
Dimensions(WxDxH)
1030x570x545mm
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容

PRODUCT FEATURES

  • Graphene super capacitor cells

  • Fast rechargeable

Long life time

DoD up to 100%

  • Safest technology

  • Low self-discharge

  • Low maintenance

Environment friendly

GENERAL CHARACTERISTICS

Part Number

GTEM-48V20K-F

Energy storage

20KWh

Nominal Voltage

48V/DC

Maximum Charge Voltage

58.8V/DC

Discharge Cut-off Voltage

37.8V/DC

ESR/AC @1KHz 50% SOC

<50mΩ

Max. Continuous Charge Current

200A

Max. Continuous Discharge Current

200A

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Charge Temperature

0℃~+55℃

Discharge Temperature

-20℃~+60℃

Cooling Method

Natural

Shell Material

Metal & ABS plastic

Parallel Connection

Recommend within 10sets

Monitoring Data

SOC,voltage, module

MECHANICAL SPECIFICATIONS

Weight

400Kg

Dimensions(WxDxH)

1030x570x545(mm)

Mount Options

Wall / floor


PRODUCT APPLICATIONS

Forklifts

Golf carts

Electric rickshaws

Electric motorcycle

  • Electric ATV

AGV

PRODUCT DIMENSIONS

(Unit: mm)
