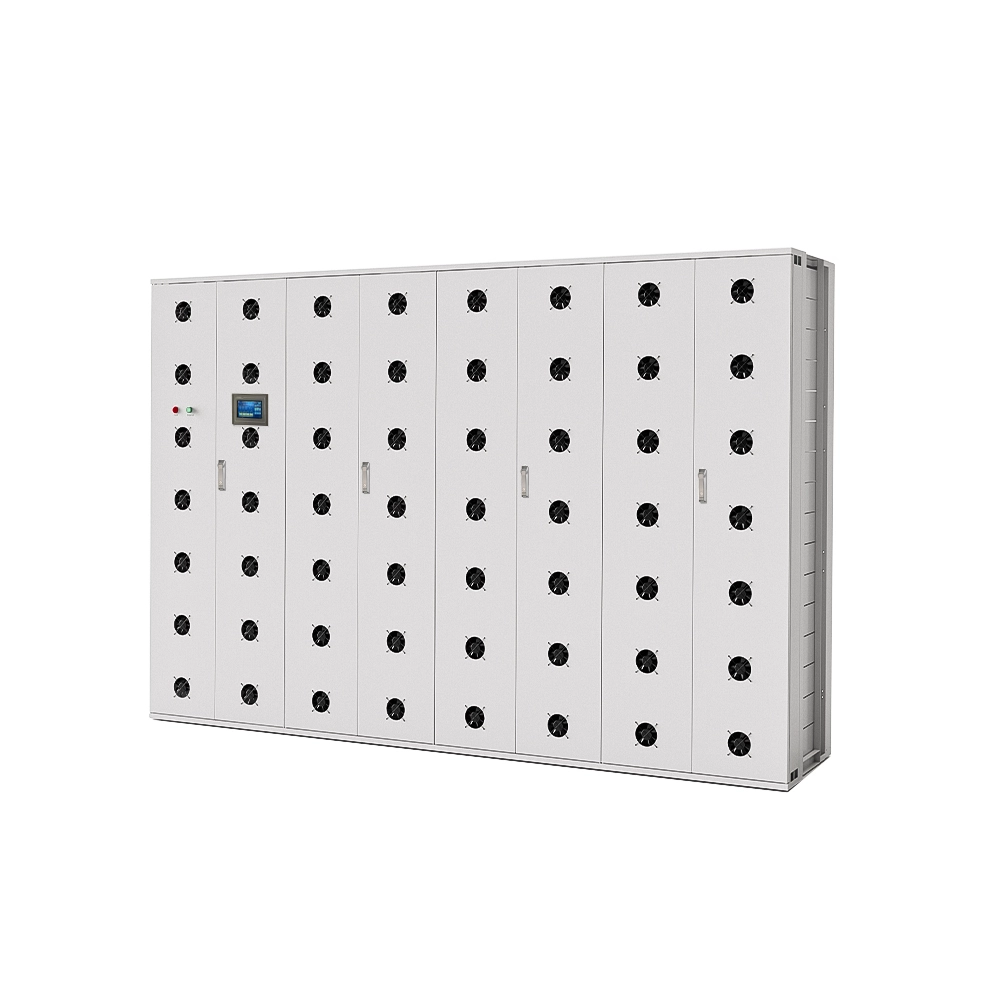

GTEF-1024V 500KWH/250KW-C Capmega High Voltage ESS

The GTEF-1024V 500KWH/250KW-C system is designed to provide high-power (above MW level) independent micro-grid solution, which can combine various input power sources, improve the reliability of power supply.

Product Features

● Solid-state supercapacitor batteries

● Long cycle life time

● Millisecond level response speed of BESS controller, Multiple ESS control functionalities;

● Compatible communication interface with battery management system (BMS);

● Proprietary versatile control algorithms and logics;

● Hundreds of communication protocols are supported;

● Work with different renewable energy for smoothing the power generation;

● Anti-islanding operation;

● The other functions required by grid requirement;

Share With:

Inquiry

Write a Review

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-1024V250KW/500KWH-C
Nominal Voltage	1024Vd.c.
Max. Charge Voltage	1152Vd.c.
Standard Discharge Cut-off Voltage	896Vd.c.
Nominal Capacity	490Ah
Energy Storage	501.76kWh
Max Continuous Charge Current	250A
Max Continuous Discharge Current	250A
Max. Continuous power	250kW
Max. Energy Density	160Wh/kg
Weight	465kg
Communication	CAN, RS485, MODBUS TCP
Dimensions	3740*2400mm

Dimensions(WxDxH)	3740*2400mm
Mount Options	On floor
