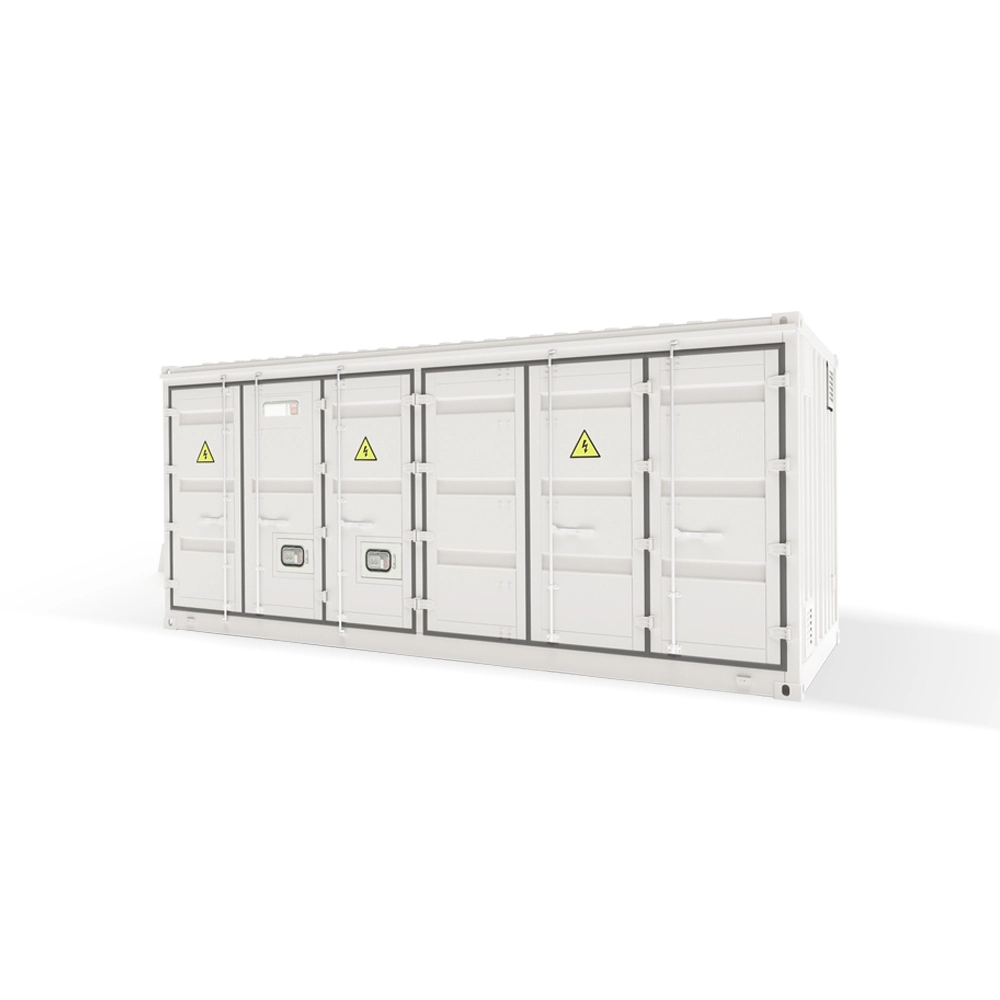

GTEF-716.8V-1MWH/500KW-C Capmega BESS

GTEF-716.8V-1MWH/500KW-C the whole system is packed in a 20-foot container, which integrates battery clusters, DC cabinet, fire protection system, air condition, power distribution box, etc. The layout diagram is shown below.
Product Features
Graphene Solid State Supercapacitor Battery
 Millisecond level response speed of BESS controller, Multiple ESS control functionalities;
 Safest & Reliable, Prevent Short Circuit Improving The Safety
 Good Heat Dissipation Management System;
 High Energy Conversion Efficiency;
 High Energy Density, Long Cycle Life;
 Long Distance Transportation, Extreme Conditions;
 Flexible Combination, Easy To Install

    oops...!

    no product data.

    Go to homepage
    Product Parameters
    General Characteristics
    Mechanical Specifications

    Part Number

    GTEF-716.8V-1MWH/500KW-C

    Nominal Voltage

    716.8V

    Max. Charge Voltage

    756Vd.c.

    Standard Discharge Cut-off Voltage

    609Vd.c.

    Nominal Capacity

    1470Ah

    Energy Storage

    1053kWh
    Max Continuous Charge Current

    750A

    Max Continuous Discharge Current

    750A

    Grid-tied AC Connection

    380/400(-15%~15%) Vac

    Operating Temperature Range

    Charge

    0℃~+55℃

    Operating Temperature Range

    Discharge

    -20℃~+60℃

    Communication

    CAN, RS485, MODBUS TCP

    Dimensions

    6058mm*2438mm*2591mm

    Dimensions(WxDxH)

    6058mm*2438mm*2591mm

    Mount Options

    On floor

    Certificate Options
