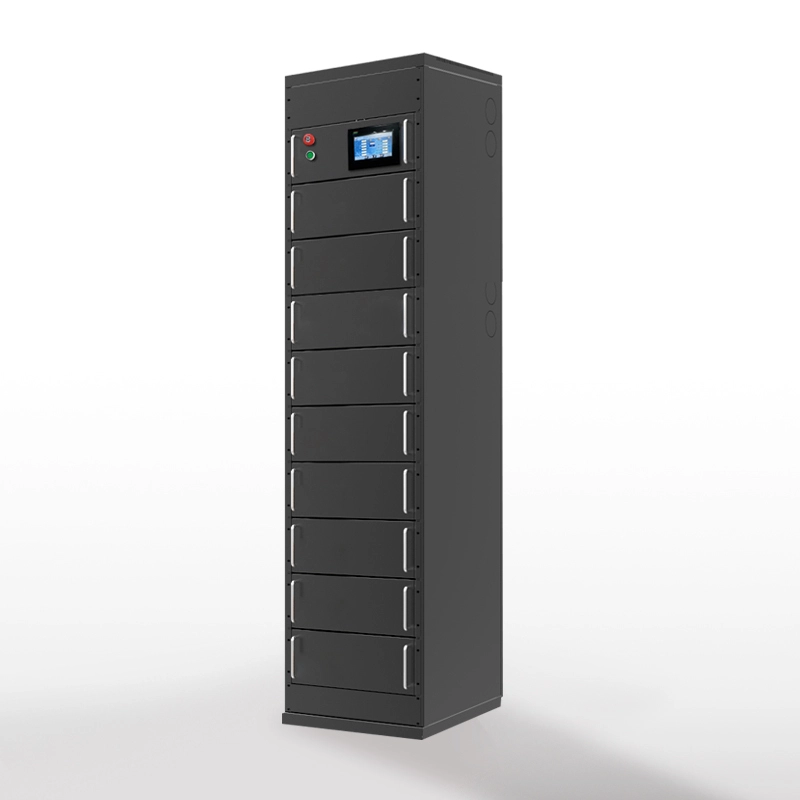

GTEG-700V39kWh-R Commercial Battery Storage System

The GTEG-700V39kWh system is designed to help reduce peak power demand by using stored energy during high usage periods. With a capacity of 39kWh, it is able to provide reliable energy supply and help businesses save on electricity costs.
Product Features
Graphene supercapacitor batteries
Long cycle life time
DoD up to 100%
Safest technology
High energy transfer efficiency
High discharge current
Low self-discharge
 Low maintenance
Environment friendly
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage
    Product Parameters
    General Characteristics
    Mechanical Specifications

    Part Number

    GTEG-700V39K-R

    Energy storage

    39.4kWh

    Nominal Voltage

    703.8Vdc

    Maximum Charge Voltage

    856.8Vdc

    Discharge Cut-off Voltage

    642.6Vdc

    ESR/AC @1KHz 50% SOC

    <100mΩ

    Max. Continuous Charge Current

    280A

    Max. Continuous Discharge Current

    280A

    Discharge rate

    5C

    Max. Continuous Output Power

    196kW

    Charge Temperature*1

    -20℃~+60℃

    Discharge Temperature*2

    -40℃~+60℃

    Operating Humidity

    0~90% RH Non-condensing

    Cells Self-discharge Rate

    2% per month

    Projected Cycle Life ( 25℃)

    50,000 times

    Recommended Depth of Discharge

    ≤ 90%

    Maximum Depth of Discharge

    100%

    Monitoring Data

    System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage

    Terminal

    Large power energy storage terminals

    Environmental Protection

    Indoor

    Cooling Method

    Liquid cooling ( cycle frequently )

    Shell Material

    Metal

    Parallel Connection

     No limited ( add controller box )

    communication

    CAN, RS485

    Weight

    580kg

    Dimensions(WxDxH)

    560x700x1804(mm)

    Mount Options

    On floor

    Certificate
    1 (10)
    1 (10)
    2 (9)
    2 (9)
    3 (7)
    3 (7)
    4 (7)
    4 (7)
    5 (8)
    5 (8)
    6 (11)
    6 (11)
    7 (6)
    7 (6)
