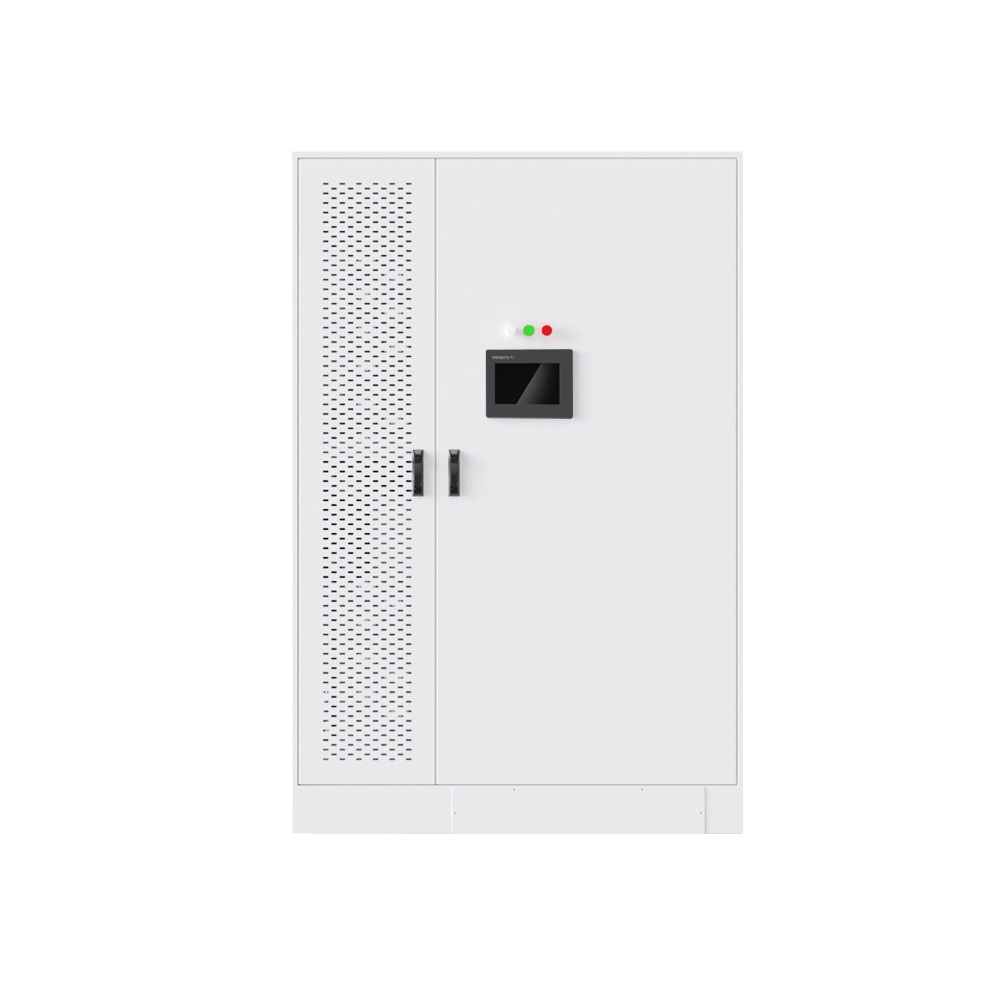

GTEF-832V/230kWh-R liquid-cooled energy storage integrated cabinet
1. The system integrates PCS, battery, BMS, EMS, thermal management, power distribution and fire protection, etc., and adopts a single string design to achieve zero loss tolerance in parallel;
2. The system has the functions of harmonic control, reactive power compensation, three-phase unbalance control, and at the same time has the functions of peak shaving and valley filling, peak regulation and frequency regulation;
3. Multiple sets of cabinets can be directly connected in parallel to realize the expansion of the energy storage system, plug and play.
Product Features
● Graphene supercapacitor batteries
● Long cycle life time
● Millisecond level response speed of BESS controller, Multiple ESS control functionalities;
● Compatible communication interface with battery management system (BMS);
● Proprietary versatile control algorithms and logics;
● Hundreds of communication protocols are supported;
● Work with different renewable energy for smoothing the power generation;
● Anti-islanding operation;
● The other functions required by grid requirement;
Share With: ![Facebook]()
![Twitter]()
![LinkedIn]()
![Gmail]()
![Pinterest]()
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
General Characteristics
Mechanical Specifications
|
Part Number |
GTEF-832V/230kWh-R
|
|
DC battery parameters
|
|
|
Cell capacity |
280Ah
|
|
Nominal voltage |
832V
|
|
Operating voltage range |
650~949V |
|
Nominal energy |
232.96kWh
|
|
Rated charge/discharge current
|
140A |
| Rated charge/discharge power |
100kW |
|
AC grid-connected parameters
|
|
| Rated output power |
100kW
|
|
Overload capacity
|
1.1 times long-term, 1.2 times 1min
|
|
Rated voltage |
AC 400V |
|
Rated output current |
145A |
|
AC access mode |
Three-phase four-wire |
|
Grid frequency range |
50Hz/60Hz ± 2.5Hz |
|
AC off-grid parameters |
|
|
AC off-grid voltage |
AC 400V |
|
AC off-grid frequency |
50Hz/60Hz |
|
Off-grid output THDU |
≤3% (linear load)
|
|
Other parameters |
|
|
Auxiliary power supply |
AC 380V/AC 220V |
|
Cooling method |
Liquid cooling |
|
Communication method |
CAN, RS485, TCP/IP |
|
Ingress protection |
IP23 |
|
Dimensions |
1413mmx1289mmx2164mm (WxDxH) |
|
Dimensions(WxDxH) |
3740*2400mm |
|
Mount Options |
On floor |
