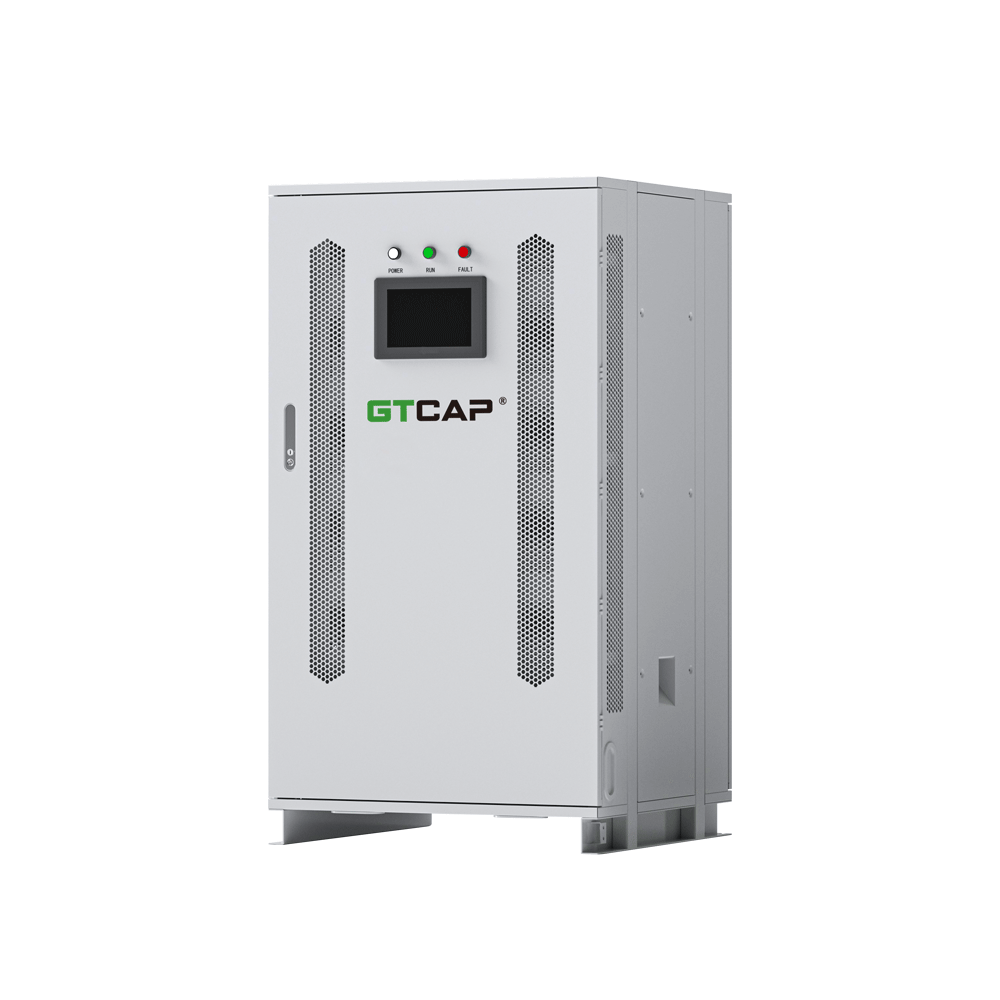

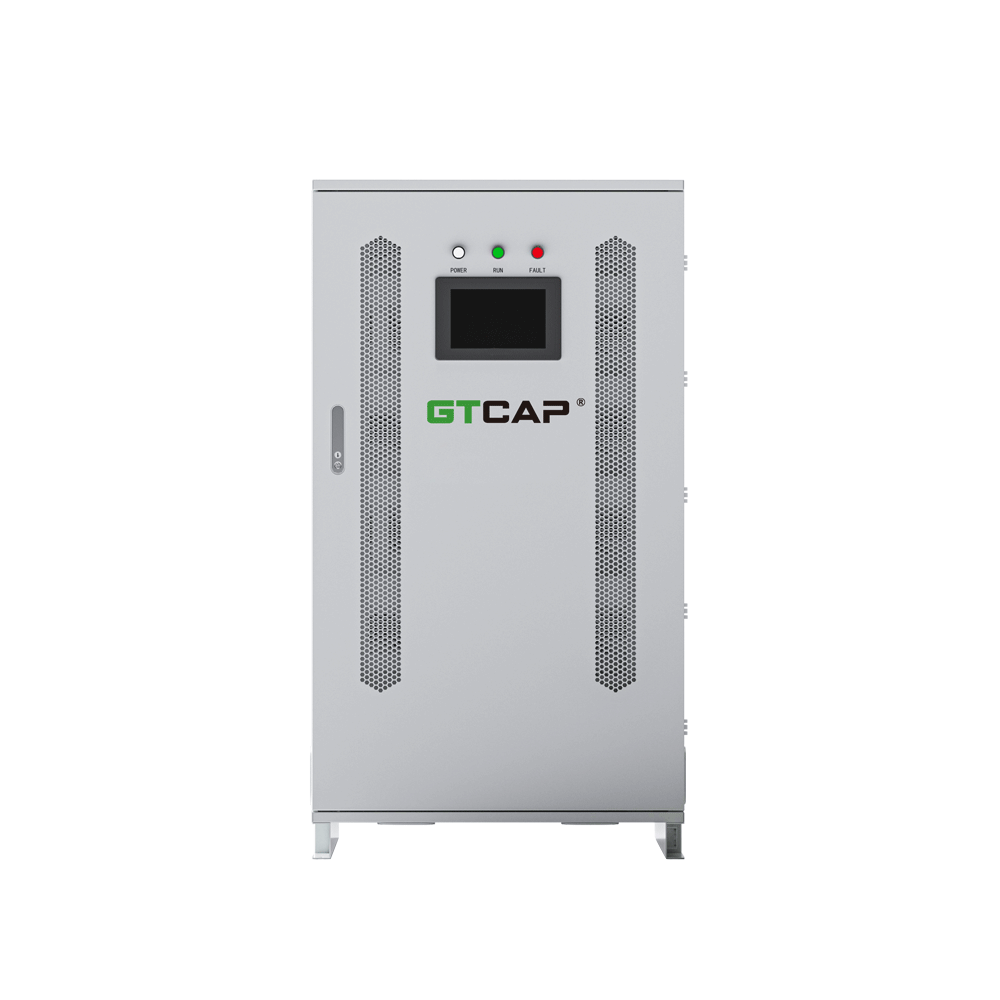

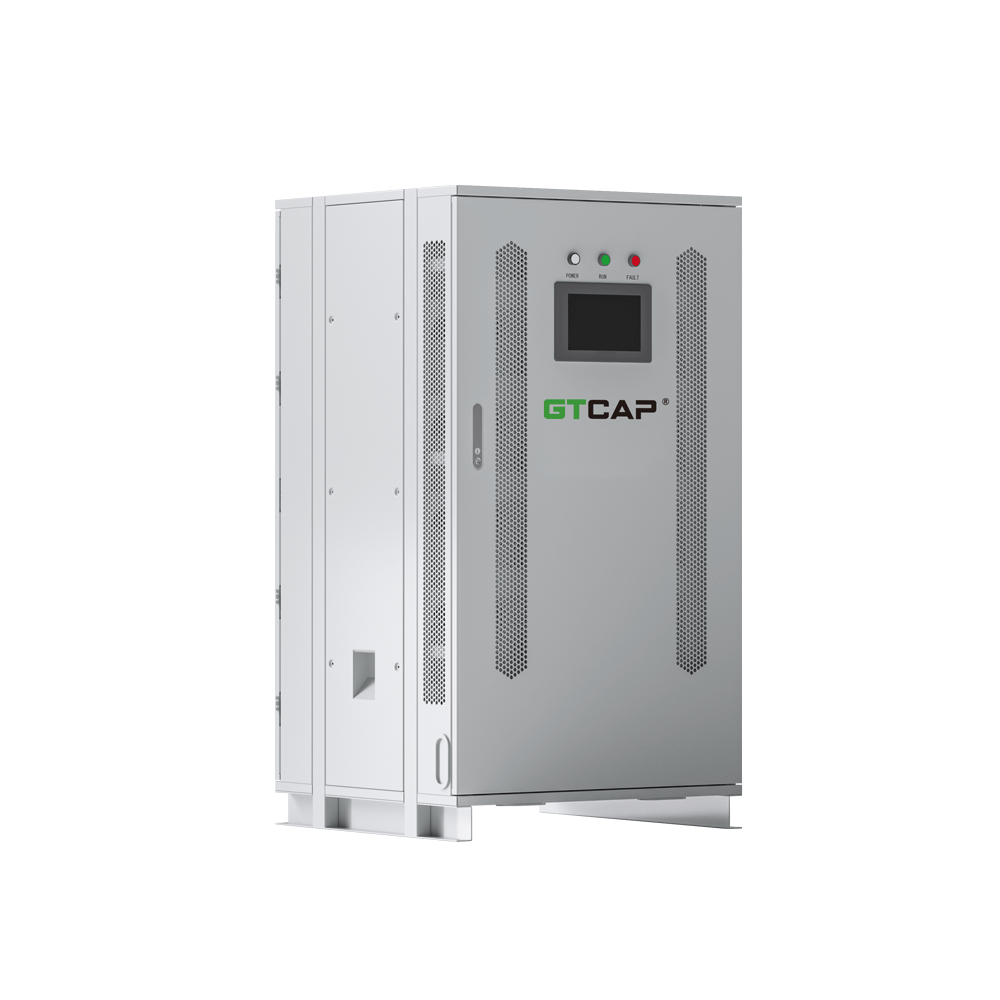

GTEG-552V33kWh/330kW-R Commercial Battery Storage System
The GTEG-552V33kWh/330kW-R system is designed to help reduce peak power demand by using stored energy during high usage periods. With a capacity of 33kWh, it is able to provide reliable energy supply and help businesses save on electricity costs.
Product Features
● Supercapacitor technology
● Long cycle life time
● DoD up to 100%
● Safest technology
● High energy transfer efficiency
● High discharge current
● Low self-discharge
● Low maintenance
● Environment friendly
Share With: ![Facebook]()
![Twitter]()
![LinkedIn]()
![Gmail]()
![Pinterest]()
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
General Characteristics
Mechanical Specifications
|
Part Number |
GTEG-552V33kWh/330kW-R
|
|
Capacity
|
60Ah |
|
33.12kWh |
|
|
Nominal Voltage |
552V/DC
|
|
Maximum Charge Voltage |
624V/DC
|
|
Discharge Cut-off Voltage |
408V/DC
|
|
ESR/AC @1KHz 50% SOC |
<80mΩ |
|
Max. Continuous Charge Current |
600A |
|
Max. Continuous Discharge Current |
600A |
|
Cells Self-discharge Rate |
2% per month |
|
Projected Cycle Life ( 25℃) |
50,000 times (70%EOL) |
|
Recommended Depth of Discharge |
≤ 90% |
|
Maximum Depth of Discharge |
100% |
|
Monitoring Data |
System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage |
|
Shell Material |
Metal & ABS plastic
|
|
communication |
CAN, RS485 |
|
Weight |
680kg |
|
Dimensions(WxDxH) |
850x800x1550(mm)
|
|
Mount Options |
IP20 Infloor |
