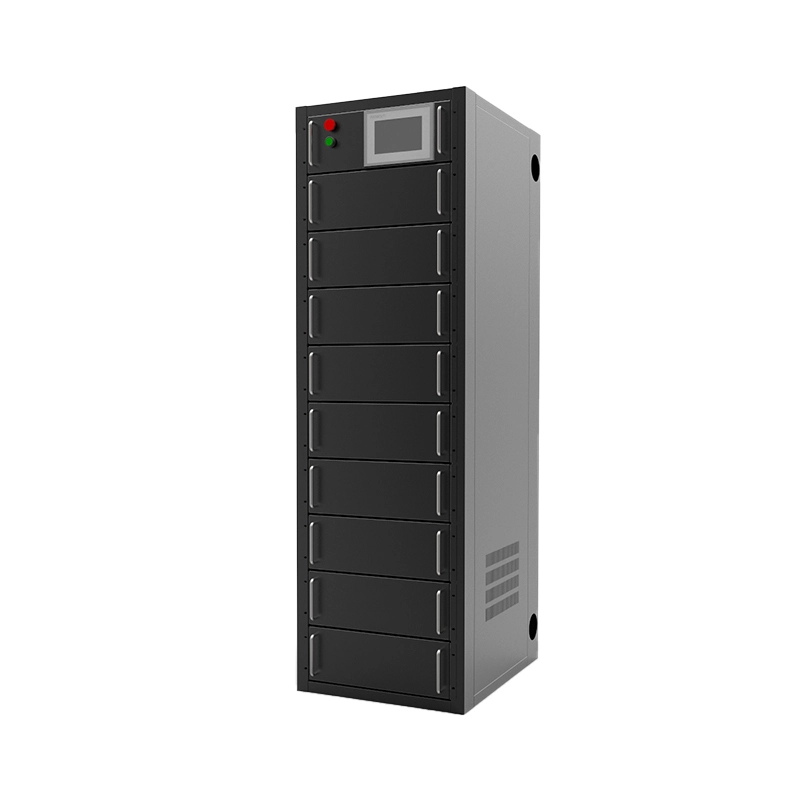

GTEG-745V52K-R Commercial Battery Storage System

The GTEG-745V52K-R system is designed to help reduce peak power demand by using stored energy during high usage periods. With a capacity of 52kWh, it is able to provide reliable energy supply and help businesses save on electricity costs.

Product Features

● Supercapacitor technology

● Long cycle life time

● DoD up to 100%

● Safest technology

● High energy transfer efficiency

● High discharge current

● Low self-discharge

● Low maintenance

● Environment friendly

Share With:

Inquiry

Write a Review

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEG-745V52K-R
Capacity	70Ah
Energy storage	52kWh
Nominal Voltage	745V/DC
Maximum Charge Voltage	858V/DC
Discharge Cut-off Voltage	616V/DC
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	210A
Max. Continuous Discharge Current	210A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	50,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Shell Material	Metal & ABS plastic
Parallel Connection	Up to 10 sets (add HVB)
communication	CAN, RS485

Weight	650kg
Dimensions(WxDxH)	790x715x1804(mm)
Mount Options	Infloor
