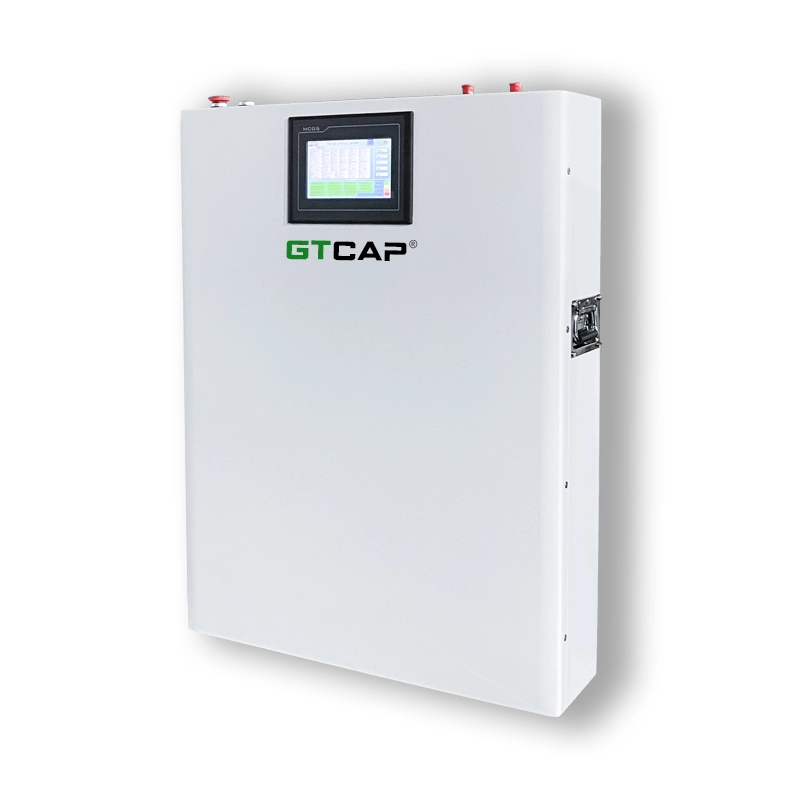

GTEM-400V14.4kWh-W Capwall Graphene Battery

GTCAP graphene supercapacitor battery, Ultra long life,High voltage make it lower lossing,Perfect option for house solar energy storage system.Wall & ground mounted available.
Product Features
Graphene supercapacitor batteries
Ultra long life
Safest technology
Smart monitoring
High energy transfer efficiency
High voltage design
Low self-discharge
Low maintenance

    oops...!

    no product data.

    Go to homepage
    Product Parameters
    General Characteristics
    Mechanical Specifications

    Part Number

    GTEM-400V14.4K-W

    Energy storage

    14.4kWh

    Nominal Voltage

    400Vdc

    Maximum Charge Voltage

    453Vdc

    Discharge Cut-off Voltage

    292Vdc

    ESR/AC @1KHz 50% SOC

    <150mΩ

    Max. Continuous Charge Current

    50A

    Max. Continuous Discharge Current

    50A

    Cells Self-discharge Rate

    2% per month

    Projected Cycle Life ( 25℃)

    20,000 times

    Round Trip Efficiency*1

    96%

    Recommended Depth of Discharge

    ≤90%

    Maximum Depth of Discharge

    100%

    Cooling Method

    Natural

    Shell Material

    Metal & ABS plastic

    Communication

    CANbus

    Monitoring Data

    System voltage,current, temperature,SOC,SOH,cycle,cell`s voltage

    Weight

    115kg

    Dimensions(WxDxH)

    700x840x194(mm)

    Mount Options

    Wall/ floor

    Certificate&Compatible Protocol

    Compatible Protocol: CAN, RS485
