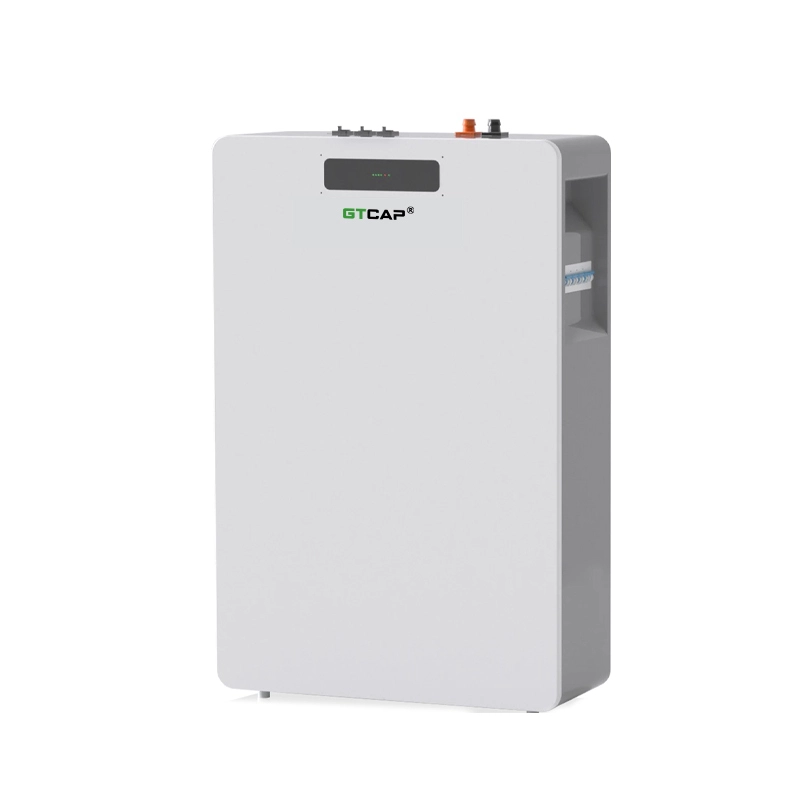

GTEM-48V15kWh-W Capwall Graphene Battery 1
GTEM-48V15kWh-W Capwall Graphene Battery 1

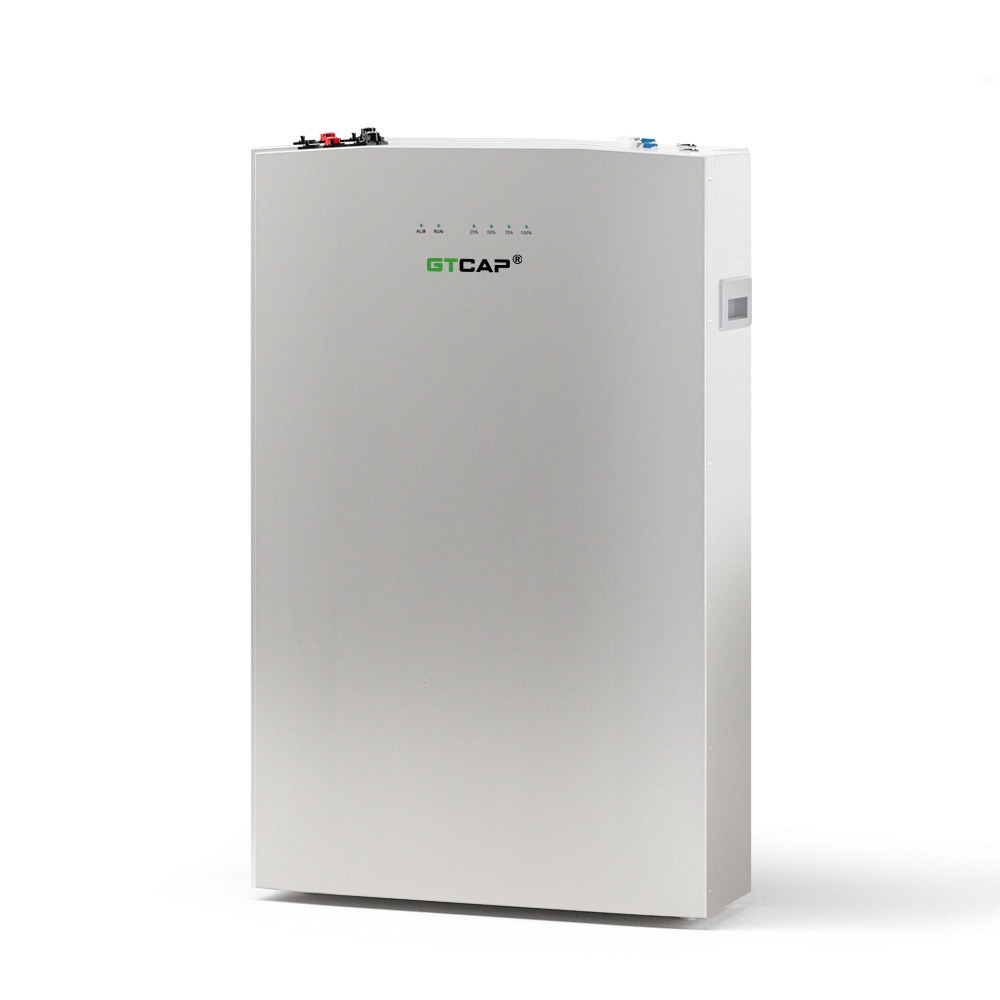

GTEM-48V15kWh-W Capwall Graphene Battery

Graphene supercapacitor battery. Perfect option for house solar energy storage system. Long life,stable and maintenance free bring much benefit to the end user, Wall & ground mounted available, smart manage system.
Product Features
Graphene supercapacitor cells
Long cycle life time
Safest technology
Smart monitoring
High energy transfer efficiency
Large discharge power
Low self-discharge
Low maintenance
Environment friendly

    oops...!

    no product data.

    Go to homepage
    Product Parameters
    General Characteristics
    Mechanical Specifications

    Part Number

    GTEM-48V15k-W

    Energy storage

    15kWh

    Nominal Voltage

    51.8Vdc

    Maximum Charge Voltage

    58Vdc

    Discharge Cut-off Voltage

    42Vdc

    ESR/AC @1KHz 50% SOC

    <15mΩ

    Max. Continuous Charge Current

    200A

    Max. Continuous Discharge Current

    200A

    Cells Self-discharge Rate

    2% per month

    Projected Cycle Life ( 25℃)

    20,000 times

    Round Trip Efficiency*1

    97.5%

    Recommended Depth of Discharge

    ≤90%

    Maximum Depth of Discharge

    100%

    Cooling Method

    Natural

    Shell Material

    Metal & ABS plastic

    Parallel Connection

    Up to 16 sets

    Monitoring Data

    System voltage,current, temperature,SOC,SOH,cycle,cell's voltage

    Weight

    95kg

    Dimensions(WxDxH)

    700x845x194(mm)

    Mount Options

    Wall/ floor

    Certificate&Compatible Protocol

    Compatible Protocol: CAN, RS485
