GTEM-800V150kW/287KWH-C Capmega Graphene Solid State Supercapacitor Battery

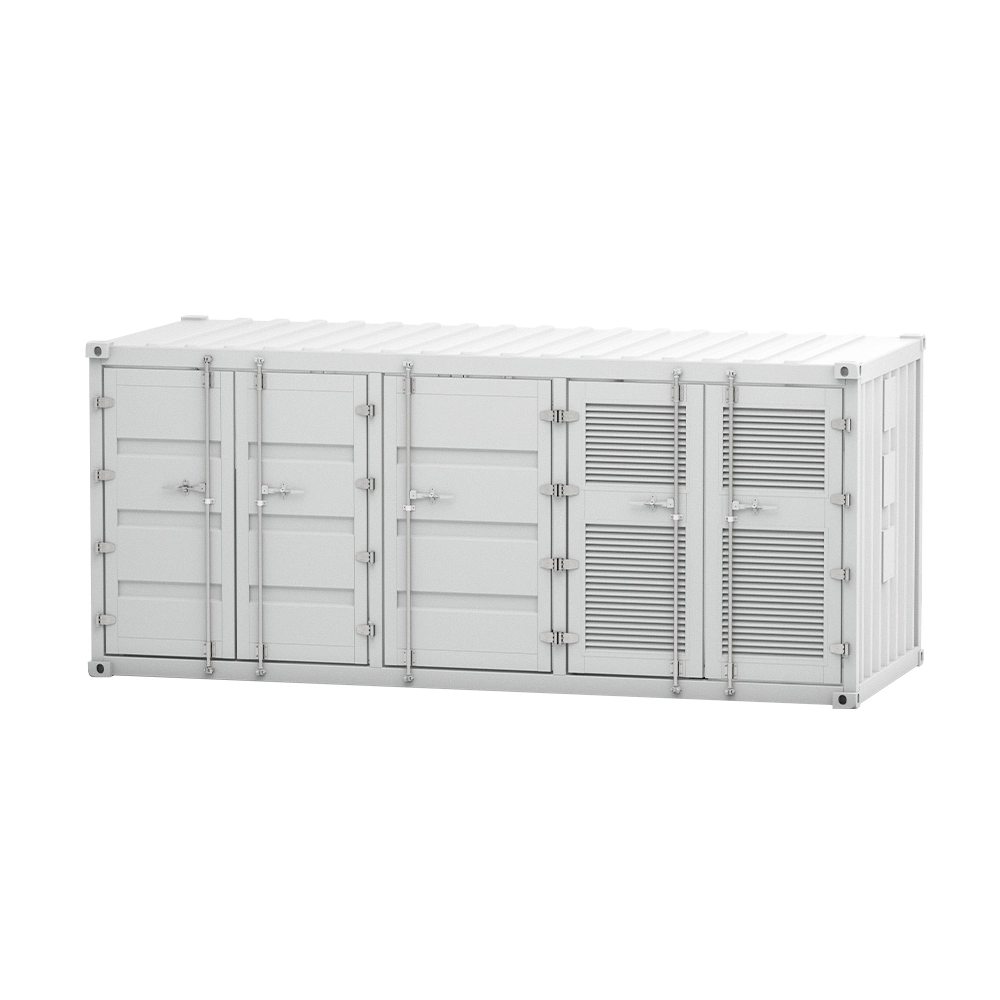

The whole system is integrated in a 20-foot standard container with dimensions of L 6058mm×D 2438mm × H 2591mm. The container is divided into two areas: battery compartment and electrical compartment, which are separated by a separation wall. There are 5 battery cabinets, air conditioners and fire nozzles in the battery compartment, and PCS, transformers, fire host, cylinders and power distribution unit（PDU） are placed in the electrical compartment.

Product Features

● Graphene Solid State Supercapacitor Battery

● Long cycle life time

● Millisecond level response speed of BESS controller, Multiple ESS control functionalities;

● Compatible communication interface with battery management system (BMS);

● Proprietary versatile control algorithms and logics;

● Hundreds of communication protocols are supported;

● Work with different renewable energy for smoothing the power generation;

● Anti-islanding operation;

● The other functions required by grid requirement;

Share With:

Inquiry

Write a Review

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-800V150kW/287KWH-C
Single battery storage capacity	287.5kWh
Number of battery cabinets	5
Battery voltage range	DC648~900V
PCS rated power	312.5kW
PCS usage power	150kW
Transformer capacity	200kVA
Transformer voltage	400V/400V
Rated output voltage	Rated output voltage
Rated output frequency	50Hz
Overall dimensions	20 foot standard container
Weight	6500kg
Fire fighting	Cabin level perfluorohexaenone
Cooling method for electrical cabin	Forced air cooling
Air conditioning and air cooling	Air conditioning and air cooling
protection grade	IP54

Dimensions(WxDxH)	6058mm×2438mm × 2591mm
Mount Options	On floor
