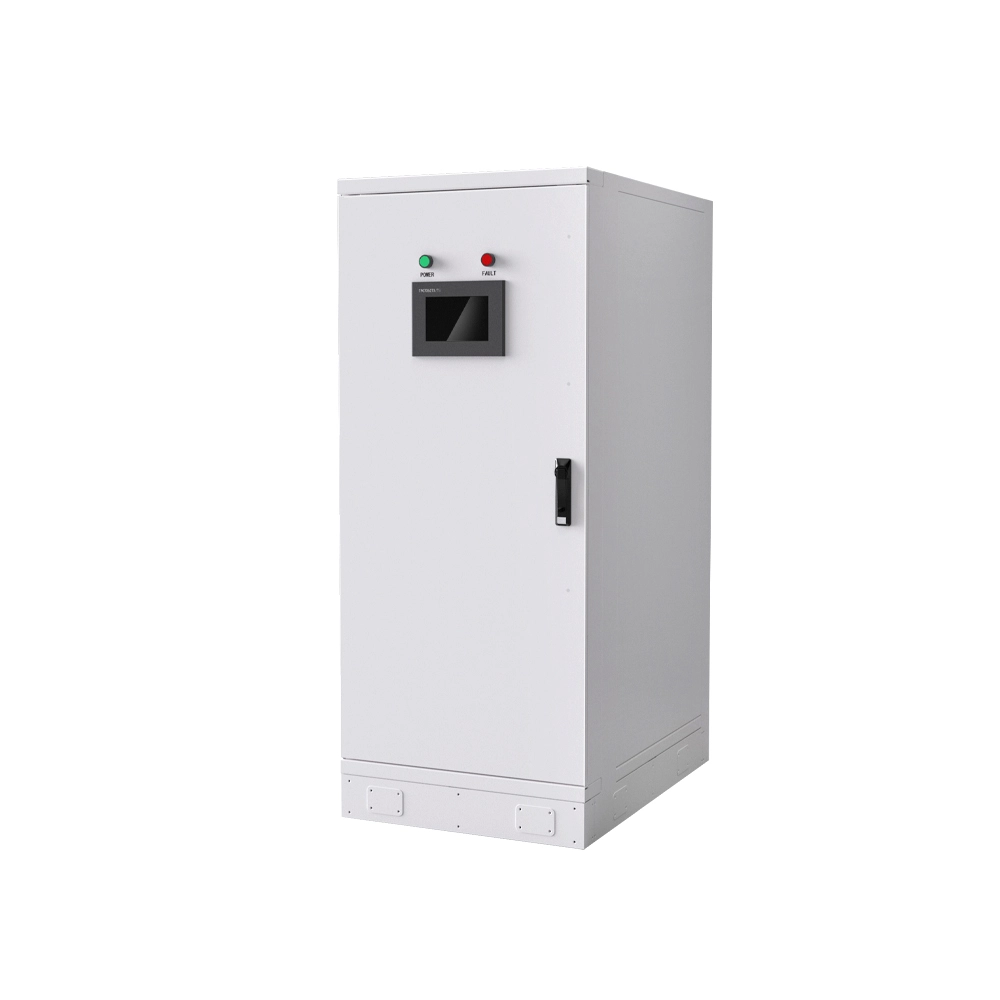

GTEM-800V96KW-57KWH-R High Voltage ESS

The GTEM-800V96KW-57KWH-R system is designed to provide high-power independent micro-grid solution, which can combine various input power sources, improve the reliability of power supply.
Product Features
 Graphene supercapacitor batteries
 Long cycle life time
 Millisecond level response speed of BESS controller, Multiple ESS control functionalities;
 Compatible communication interface with battery management system (BMS);
 Proprietary versatile control algorithms and logics;
 Hundreds of communication protocols are supported;
 Work with different renewable energy for smoothing the power generation;
 Anti-islanding operation;
 The other functions required by grid requirement;

    oops...!

    no product data.

    Go to homepage
    Product Parameters
    General Characteristics
    Mechanical Specifications

    Part Number

    GTEM-800V96KW-57KWH-R

    Energy storage

    57.5kWh

    Nominal Voltage

    799.2Vd.c

    Maximum Charge Voltage

    896.4Vd.c

    Discharge Cut-off Voltage

    648Vd.c

    ESR/AC @1KHz 50% SOC

    <70mΩ

    Max. Continuous Charge Current

    80A

    Max. Continuous Discharge Current

    120A

    Cooling Method

    Natural

    Recommended Depth of Discharge

    ≤90%

    Maximum Depth of Discharge

    100%

    Shell Material

    Metal

    Monitoring Data

    System voltage,current, temperature,SOC,SOH,cell’s voltage

    Parallel Connection

    Up to 16 parallel connections allowed

    Storage Conditions

    -20℃~+40℃ 25%~95%RH

    SOC>30%, one full charge needed per two months

    Weight

    550kg

    Dimensions(WxDxH)

    600x870x1450(mm)
