The current international advanced surface treatment technology is used for battery energy storage production. This product has passed the formal certification of industry quality standard. The product is offered by with a wide range of applications in the industry.

Product Parameters

General Characteristics

Mechanical Specifications

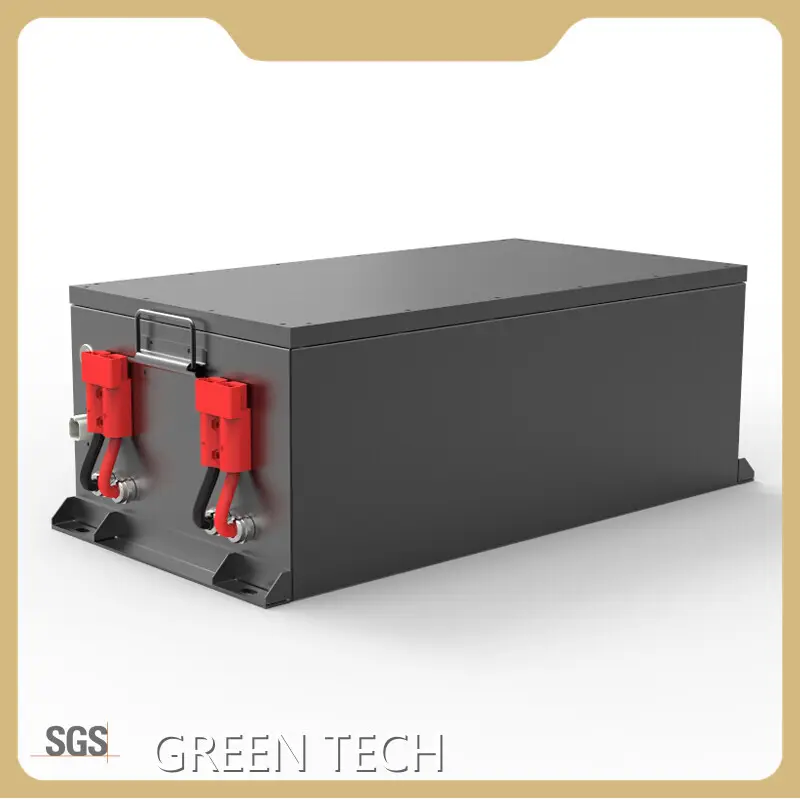

Part Number	GTEM-48V3600-G
Energy storage	3.62kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Cut-off Current (charging)	4A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet
